SDO HMI 2011-04-30 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.34 | 207.30 | 53.91 | 382.44 | 20.49 | 186.78 | 71.42 | 292.74 | 0.9619 | 67.7 | 54.1 | |
|
previous
or next observation for the same group /

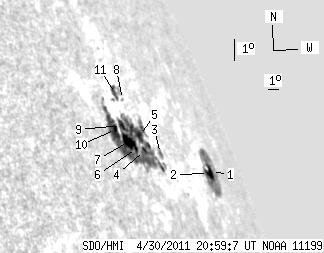

back to the solar disc SDO HMI 2011-04-30 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.41 | 41.89 | 6.73 | 114.92 | 20.10 | 192.90 | 77.53 | 291.31 | 0.9850 | 281.3 | -24.0 | |
| 5.44 | -1.00 | 14.50 | -1.00 | 19.99 | 192.27 | 76.90 | 291.29 | 0.9832 | -399.0 | 999999 | |
| 0.00 | 4.37 | 0.00 | 7.97 | 20.24 | 186.83 | 71.47 | 292.42 | 0.9635 | -186.0 | -147.5 | |
| 1.87 | 149.19 | 3.13 | 240.09 | 20.22 | 185.24 | 69.87 | 292.70 | 0.9563 | 254.0 | 103.5 | |
| 3.74 | -4.00 | 6.29 | -4.00 | 20.72 | 185.27 | 69.91 | 293.20 | 0.9570 | -556.0 | 999999 | |
| 0.71 | -4.00 | 1.15 | -4.00 | 20.24 | 184.50 | 69.14 | 292.86 | 0.9528 | 231.4 | 999999 | |
| 7.66 | -4.00 | 12.02 | -4.00 | 20.43 | 183.97 | 68.60 | 293.16 | 0.9504 | 453.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.64 | 21.88 | 184.90 | 69.53 | 294.46 | 0.9565 | -250.0 | -254.7 | |
| 4.19 | -4.00 | 6.57 | -4.00 | 20.94 | 183.84 | 68.48 | 293.72 | 0.9504 | 384.7 | 999999 | |
| 2.32 | -4.00 | 3.52 | -4.00 | 20.76 | 183.14 | 67.78 | 293.68 | 0.9466 | 753.7 | 999999 | |
| 0.00 | 10.87 | 0.00 | 17.82 | 22.04 | 184.42 | 69.06 | 294.73 | 0.9544 | -20.0 | 8.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
