SDO HMI 2011-04-30 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.21 | 61.49 | 1.65 | 31.63 | -18.31 | 121.17 | 6.36 | 203.32 | 0.2677 | -13.1 | -291.8 | |
|
previous
or next observation for the same group /

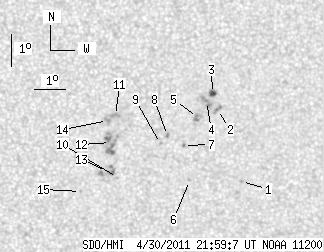

back to the solar disc SDO HMI 2011-04-30 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.70 | -19.72 | 124.26 | 9.45 | 209.98 | 0.3106 | 817.0 | 624.6 | |
| 0.00 | 3.83 | 0.00 | 1.97 | -17.48 | 123.37 | 8.56 | 211.68 | 0.2714 | 910.0 | 733.6 | |
| 3.21 | 4.01 | 1.65 | 2.06 | -16.99 | 123.18 | 8.37 | 212.16 | 0.2628 | 1047.4 | 763.3 | |
| 0.00 | 5.88 | 0.00 | 3.02 | -17.24 | 123.00 | 8.19 | 211.09 | 0.2647 | 1064.0 | 875.9 | |
| 0.00 | 4.99 | 0.00 | 2.57 | -17.74 | 122.74 | 7.93 | 209.29 | 0.2697 | 795.0 | 754.8 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -19.70 | 122.57 | 7.76 | 205.44 | 0.2973 | -767.0 | -623.5 | |
| 0.00 | 1.43 | 0.00 | 0.74 | -18.61 | 122.33 | 7.52 | 206.48 | 0.2793 | 564.0 | 495.6 | |
| 0.00 | 1.25 | 0.00 | 0.64 | -18.30 | 121.80 | 6.99 | 205.38 | 0.2708 | -890.0 | -814.2 | |
| 0.00 | 1.25 | 0.00 | 0.64 | -18.56 | 121.59 | 6.78 | 204.29 | 0.2731 | 667.0 | 465.4 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -19.63 | 120.25 | 5.43 | 198.56 | 0.2816 | -478.0 | -407.1 | |
| 0.00 | 3.92 | 0.00 | 2.01 | -17.70 | 120.12 | 5.31 | 200.72 | 0.2503 | -993.0 | -847.6 | |
| 0.00 | 18.09 | 0.00 | 9.29 | -18.54 | 119.99 | 5.18 | 199.08 | 0.2628 | -695.0 | -858.6 | |
| 0.00 | 8.82 | 0.00 | 4.55 | -19.44 | 119.92 | 5.11 | 197.73 | 0.2769 | -984.0 | -802.6 | |
| 0.00 | 3.65 | 0.00 | 1.87 | -17.85 | 119.87 | 5.06 | 199.60 | 0.2513 | -1132.0 | -807.6 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -20.07 | 119.07 | 4.26 | 194.32 | 0.2831 | -811.0 | -529.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
