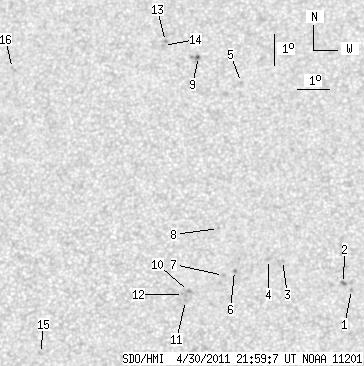

SDO HMI 2011-04-30 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 29.05 | 0.64 | 15.50 | 16.53 | 111.71 | -3.10 | 8.00 | 0.3619 | -388.8 | -357.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-04-30 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.84 | 13.61 | 116.31 | 1.50 | 355.25 | 0.3088 | -820.0 | -654.0 | |
| 0.00 | 2.58 | 0.00 | 1.35 | 13.80 | 116.07 | 1.25 | 356.07 | 0.3117 | -1017.0 | -745.2 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 14.53 | 114.17 | -0.64 | 1.94 | 0.3233 | -727.0 | -595.9 | |
| 0.00 | 2.41 | 0.00 | 1.26 | 14.56 | 113.73 | -1.08 | 3.24 | 0.3242 | -699.0 | -543.5 | |
| 0.00 | 1.43 | 0.00 | 0.78 | 20.32 | 112.83 | -1.99 | 4.47 | 0.4186 | 791.0 | 603.4 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 14.21 | 112.67 | -2.14 | 6.52 | 0.3199 | -919.0 | -796.6 | |
| 0.00 | 1.69 | 0.00 | 0.88 | 14.06 | 112.33 | -2.48 | 7.62 | 0.3180 | -926.0 | -699.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 15.56 | 112.16 | -2.65 | 7.51 | 0.3430 | -621.0 | -506.6 | |
| 1.16 | 4.63 | 0.64 | 2.55 | 21.19 | 111.42 | -3.39 | 7.32 | 0.4346 | -850.4 | -564.7 | |
| 0.00 | 2.14 | 0.00 | 1.12 | 13.55 | 111.25 | -3.56 | 11.19 | 0.3126 | -882.0 | -772.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.27 | 111.16 | -3.65 | 11.65 | 0.3083 | -826.0 | -656.7 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 13.46 | 111.10 | -3.72 | 11.73 | 0.3116 | -639.0 | -689.9 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 21.70 | 110.33 | -4.48 | 9.42 | 0.4450 | 756.0 | 647.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 21.57 | 110.27 | -4.54 | 9.60 | 0.4431 | 960.0 | 768.4 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 11.63 | 106.69 | -8.12 | 26.91 | 0.3071 | -611.0 | -426.5 | |
| 0.00 | 2.14 | 0.00 | 1.19 | 20.84 | 105.38 | -9.43 | 19.91 | 0.4517 | 644.0 | 555.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
