SDO HMI 2011-04-30 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.52 | 17.21 | 0.80 | 9.14 | 16.27 | 112.50 | -1.76 | 4.50 | 0.3537 | -445.2 | -326.0 | |
|
previous
or next observation for the same group /

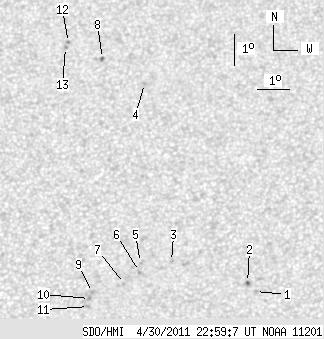

back to the solar disc SDO HMI 2011-04-30 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.74 | 13.59 | 116.32 | 2.06 | 353.50 | 0.3093 | -763.0 | -622.5 | |
| 1.07 | 1.78 | 0.56 | 0.93 | 13.87 | 116.07 | 1.81 | 354.36 | 0.3136 | -792.0 | -582.2 | |
| 0.00 | 1.60 | 0.00 | 0.84 | 14.54 | 113.70 | -0.56 | 1.67 | 0.3233 | -856.0 | -629.0 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 20.33 | 112.82 | -1.44 | 3.25 | 0.4180 | 826.0 | 695.2 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 14.51 | 112.74 | -1.52 | 4.58 | 0.3237 | -680.0 | -720.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 14.22 | 112.71 | -1.55 | 4.74 | 0.3190 | -804.0 | -753.4 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 13.84 | 112.24 | -2.01 | 6.28 | 0.3134 | -786.0 | -697.1 | |
| 0.45 | 1.43 | 0.24 | 0.78 | 21.16 | 111.45 | -2.81 | 6.09 | 0.4330 | -857.6 | -751.8 | |
| 0.00 | 1.69 | 0.00 | 0.88 | 13.56 | 111.25 | -3.01 | 9.48 | 0.3110 | -886.0 | -728.6 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 13.37 | 111.16 | -3.10 | 9.87 | 0.3081 | -999.0 | -826.7 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 13.11 | 111.13 | -3.13 | 10.10 | 0.3041 | -945.0 | -725.0 | |
| 0.00 | 1.60 | 0.00 | 0.89 | 21.71 | 110.33 | -3.93 | 8.28 | 0.4437 | 777.0 | 632.9 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 21.54 | 110.24 | -4.02 | 8.54 | 0.4413 | 925.0 | 769.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
