SDO HMI 2011-04-30 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.41 | 245.37 | 35.45 | 215.00 | 17.88 | 62.11 | -51.60 | 64.81 | 0.8245 | -398.0 | -205.7 | |
|
previous
or next observation for the same group /

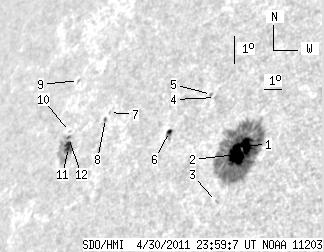

back to the solar disc SDO HMI 2011-04-30 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.72 | 203.73 | 8.13 | 171.25 | 17.86 | 64.04 | -49.67 | 64.17 | 0.8083 | -989.3 | -274.5 | |
| 18.99 | -1.00 | 15.98 | -1.00 | 17.59 | 63.70 | -50.01 | 64.62 | 0.8106 | -876.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.05 | 16.10 | 63.25 | -50.46 | 66.53 | 0.8099 | 461.0 | 325.1 | |
| 0.00 | 2.05 | 0.00 | 1.83 | 19.56 | 61.81 | -51.90 | 63.07 | 0.8339 | -502.0 | -371.9 | |
| 0.00 | 1.43 | 0.00 | 1.28 | 19.67 | 61.54 | -52.16 | 63.04 | 0.8365 | -474.0 | -366.5 | |
| 1.87 | 5.17 | 1.74 | 4.80 | 18.57 | 59.81 | -53.90 | 64.90 | 0.8478 | 305.5 | 568.7 | |
| 0.00 | 0.89 | 0.00 | 0.93 | 19.44 | 55.93 | -57.78 | 65.18 | 0.8809 | 447.0 | 397.2 | |
| 1.07 | 1.87 | 1.11 | 1.95 | 19.25 | 55.79 | -57.92 | 65.43 | 0.8815 | 236.7 | 306.2 | |
| 0.00 | 1.34 | 0.00 | 1.53 | 20.66 | 53.21 | -60.49 | 64.65 | 0.9029 | 107.0 | 120.1 | |
| 0.00 | 0.71 | 0.00 | 0.79 | 18.96 | 53.71 | -60.00 | 66.34 | 0.8961 | 167.0 | 147.9 | |
| 6.60 | 26.93 | 7.21 | 29.59 | 18.43 | 53.96 | -59.75 | 66.85 | 0.8932 | 581.8 | 76.3 | |
| 1.16 | -11.00 | 1.28 | -11.00 | 18.76 | 53.76 | -59.94 | 66.54 | 0.8953 | 278.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
