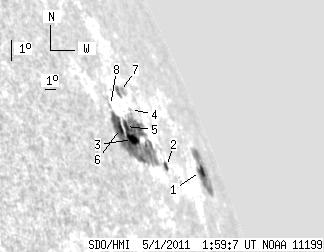

SDO HMI 2011-05-01 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.48 | 160.98 | 36.34 | 355.57 | 20.50 | 186.53 | 73.92 | 292.31 | 0.9717 | 220.1 | 38.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.59 | 32.73 | 8.90 | 117.62 | 20.04 | 192.10 | 79.49 | 290.98 | 0.9900 | -326.1 | -8.4 | |
| 2.41 | 3.39 | 5.18 | 7.27 | 19.81 | 186.83 | 74.22 | 291.51 | 0.9742 | 143.6 | -78.1 | |
| 6.60 | 114.60 | 11.91 | 211.23 | 20.48 | 183.88 | 71.27 | 292.69 | 0.9629 | 435.6 | 78.9 | |
| 0.00 | 0.98 | 0.00 | 1.91 | 21.54 | 184.92 | 72.32 | 293.58 | 0.9681 | -356.0 | -320.7 | |
| 2.85 | -3.00 | 5.11 | -3.00 | 20.88 | 183.63 | 71.02 | 293.15 | 0.9621 | 375.9 | 999999 | |
| 3.03 | -3.00 | 5.24 | -3.00 | 20.77 | 183.01 | 70.40 | 293.16 | 0.9593 | 728.0 | 999999 | |
| 0.00 | 8.03 | 0.00 | 15.38 | 22.10 | 184.56 | 71.96 | 294.22 | 0.9672 | -317.0 | -130.7 | |
| 0.00 | 1.25 | 0.00 | 2.16 | 21.52 | 182.85 | 70.25 | 293.95 | 0.9593 | 566.0 | 499.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
