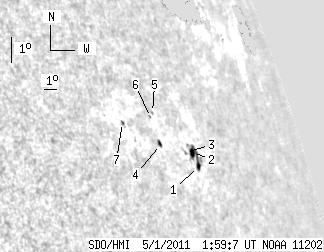

SDO HMI 2011-05-01 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.93 | 25.78 | 11.43 | 36.93 | 15.27 | 180.23 | 67.63 | 288.00 | 0.9392 | -158.3 | -66.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 17.30 | 3.18 | 25.67 | 14.85 | 181.16 | 68.55 | 287.38 | 0.9441 | -240.1 | -106.2 | |
| 3.92 | -1.00 | 5.78 | -1.00 | 15.28 | 180.93 | 68.33 | 287.86 | 0.9434 | -481.4 | 999999 | |
| 0.00 | 2.05 | 0.00 | 2.94 | 15.23 | 180.31 | 67.71 | 287.93 | 0.9398 | -434.0 | -453.0 | |
| 1.87 | 3.12 | 2.47 | 4.12 | 15.35 | 178.38 | 65.78 | 288.43 | 0.9286 | 224.1 | 214.8 | |
| 0.00 | 1.16 | 0.00 | 1.55 | 16.37 | 178.42 | 65.81 | 289.51 | 0.9301 | 145.0 | 98.2 | |
| 0.00 | 0.54 | 0.00 | 0.71 | 16.20 | 178.14 | 65.54 | 289.37 | 0.9282 | 426.0 | 389.3 | |
| 0.00 | 1.61 | 0.00 | 1.94 | 15.88 | 175.89 | 63.29 | 289.53 | 0.9134 | 413.0 | 328.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
