SDO HMI 2011-05-01 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.23 | 233.81 | 33.99 | 193.27 | 17.80 | 62.49 | -49.02 | 63.94 | 0.8008 | -391.6 | -206.8 | |
|
previous
or next observation for the same group /

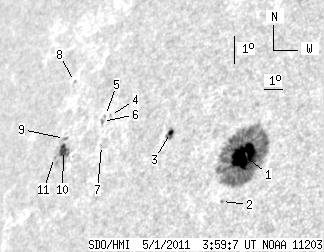

back to the solar disc SDO HMI 2011-05-01 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.04 | 204.10 | 24.95 | 164.16 | 17.65 | 63.73 | -47.78 | 63.66 | 0.7896 | -959.0 | -290.5 | |
| 0.00 | 1.07 | 0.00 | 0.86 | 16.20 | 63.18 | -48.33 | 65.62 | 0.7897 | 476.0 | 370.5 | |
| 2.59 | 5.98 | 2.28 | 5.27 | 18.63 | 59.73 | -51.77 | 64.09 | 0.8297 | 498.0 | 519.6 | |
| 0.00 | 0.98 | 0.00 | 0.95 | 19.41 | 56.11 | -55.39 | 64.48 | 0.8622 | 519.0 | 464.3 | |
| 0.00 | 1.07 | 0.00 | 1.05 | 19.43 | 55.82 | -55.68 | 64.55 | 0.8646 | 279.0 | 274.4 | |
| 0.00 | 1.43 | 0.00 | 1.40 | 19.23 | 55.75 | -55.76 | 64.79 | 0.8647 | 440.0 | 346.1 | |
| 0.00 | 1.52 | 0.00 | 1.46 | 18.43 | 56.09 | -55.41 | 65.57 | 0.8598 | 460.0 | 368.7 | |
| 0.00 | 1.25 | 0.00 | 1.33 | 20.71 | 53.25 | -58.25 | 63.96 | 0.8872 | 229.0 | 189.4 | |
| 0.00 | 2.14 | 0.00 | 2.21 | 18.81 | 53.74 | -57.76 | 65.88 | 0.8792 | 298.0 | 193.7 | |
| 6.60 | 13.20 | 6.76 | 13.47 | 18.41 | 53.90 | -57.61 | 66.27 | 0.8771 | 568.0 | 504.2 | |
| 0.00 | 1.07 | 0.00 | 1.11 | 18.21 | 53.46 | -58.04 | 66.62 | 0.8800 | -190.0 | -166.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
