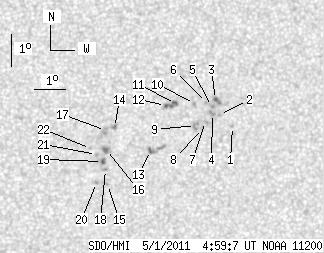

SDO HMI 2011-05-01 04:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.51 | 55.13 | 3.38 | 28.59 | -17.88 | 121.61 | 10.66 | 216.41 | 0.2983 | 2.0 | -31.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 04:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.70 | -17.72 | 124.01 | 13.05 | 222.39 | 0.3205 | 727.0 | 571.5 | |
| 0.00 | 1.25 | 0.00 | 0.65 | -17.35 | 123.56 | 12.61 | 222.24 | 0.3112 | 764.0 | 639.5 | |
| 1.25 | 3.39 | 0.65 | 1.76 | -16.89 | 123.40 | 12.44 | 222.95 | 0.3039 | 997.5 | 942.9 | |
| 0.00 | 3.03 | 0.00 | 1.58 | -17.33 | 123.33 | 12.38 | 221.80 | 0.3083 | 904.0 | 798.7 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -17.11 | 123.28 | 12.33 | 222.19 | 0.3052 | 1064.0 | 910.0 | |
| 0.00 | 1.43 | 0.00 | 0.74 | -16.99 | 123.11 | 12.16 | 222.09 | 0.3019 | 841.0 | 683.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -17.58 | 123.12 | 12.17 | 220.76 | 0.3091 | 791.0 | 686.4 | |
| 0.00 | 1.43 | 0.00 | 0.74 | -17.80 | 123.04 | 12.08 | 220.09 | 0.3109 | 722.0 | 611.8 | |
| 0.00 | 4.73 | 0.00 | 2.46 | -17.71 | 122.81 | 11.85 | 219.76 | 0.3073 | 713.0 | 715.9 | |
| 0.00 | 1.43 | 0.00 | 0.74 | -17.03 | 122.73 | 11.77 | 221.11 | 0.2981 | 981.0 | 813.8 | |
| 1.70 | 7.49 | 0.88 | 3.88 | -17.03 | 122.12 | 11.16 | 219.62 | 0.2916 | 924.8 | 765.9 | |
| 1.07 | -11.00 | 0.55 | -11.00 | -17.10 | 121.80 | 10.84 | 218.68 | 0.2890 | 854.8 | 999999 | |
| 1.78 | 7.58 | 0.93 | 3.94 | -18.50 | 121.40 | 10.45 | 214.69 | 0.3034 | -795.6 | -725.7 | |
| 0.00 | 2.77 | 0.00 | 1.43 | -17.80 | 120.20 | 9.24 | 212.92 | 0.2827 | -1085.0 | -867.9 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -19.58 | 120.07 | 9.12 | 209.27 | 0.3066 | -839.0 | -694.2 | |
| 0.00 | 4.55 | 0.00 | 2.35 | -18.49 | 119.98 | 9.02 | 210.97 | 0.2903 | -1107.0 | -872.9 | |
| 0.00 | 4.19 | 0.00 | 2.16 | -17.90 | 119.91 | 8.96 | 211.93 | 0.2815 | -707.0 | -820.6 | |
| 0.00 | 1.87 | 0.00 | 0.97 | -19.11 | 119.98 | 9.02 | 209.84 | 0.2992 | -951.0 | -700.9 | |
| 0.71 | 2.50 | 0.37 | 1.29 | -18.87 | 119.87 | 8.91 | 209.98 | 0.2947 | -995.2 | -836.3 | |
| 0.00 | 1.34 | 0.00 | 0.70 | -19.52 | 119.71 | 8.76 | 208.41 | 0.3029 | -903.0 | -675.4 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -18.65 | 119.66 | 8.71 | 209.80 | 0.2899 | -935.0 | -670.4 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -18.46 | 119.46 | 8.51 | 209.57 | 0.2856 | -767.0 | -593.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
