SDO HMI 2011-05-01 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.55 | 17.84 | 7.80 | 29.61 | 15.07 | 180.50 | 70.64 | 287.25 | 0.9550 | -204.5 | -57.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

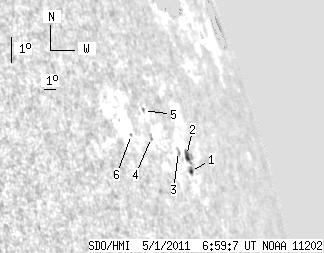

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.43 | 3.30 | 2.44 | 5.67 | 14.53 | 181.23 | 71.37 | 286.55 | 0.9583 | -272.9 | -285.7 | |
| 3.12 | 8.12 | 5.36 | 14.07 | 15.03 | 181.24 | 71.38 | 287.08 | 0.9587 | -345.1 | 72.8 | |
| 0.00 | 2.50 | 0.00 | 4.13 | 15.11 | 180.52 | 70.66 | 287.27 | 0.9553 | -522.0 | -457.5 | |
| 0.00 | 1.78 | 0.00 | 2.65 | 15.39 | 178.28 | 68.42 | 287.96 | 0.9439 | 294.0 | 191.4 | |
| 0.00 | 1.34 | 0.00 | 1.99 | 16.25 | 178.20 | 68.35 | 288.86 | 0.9444 | 219.0 | 164.9 | |
| 0.00 | 0.80 | 0.00 | 1.10 | 15.37 | 176.60 | 66.74 | 288.25 | 0.9343 | 112.0 | 81.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
