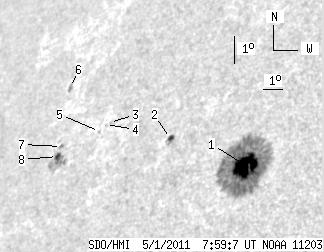

SDO HMI 2011-05-01 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.26 | 248.72 | 31.15 | 197.24 | 17.80 | 62.35 | -46.96 | 63.09 | 0.7811 | -539.9 | -173.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.19 | 218.13 | 25.61 | 168.47 | 17.62 | 63.62 | -45.69 | 62.81 | 0.7690 | -980.6 | -257.8 | |
| 2.59 | 6.07 | 2.18 | 5.11 | 18.72 | 59.67 | -49.64 | 63.19 | 0.8108 | 543.7 | 538.1 | |
| 0.00 | 0.62 | 0.00 | 0.57 | 19.45 | 56.21 | -53.10 | 63.67 | 0.8435 | 494.0 | 506.6 | |
| 0.00 | 0.54 | 0.00 | 0.49 | 19.40 | 56.02 | -53.29 | 63.79 | 0.8449 | 567.0 | 488.2 | |
| 0.00 | 0.80 | 0.00 | 0.74 | 19.18 | 55.80 | -53.51 | 64.11 | 0.8462 | 603.0 | 494.1 | |
| 0.00 | 3.12 | 0.00 | 3.12 | 20.78 | 53.34 | -55.97 | 63.18 | 0.8703 | 473.0 | 319.9 | |
| 0.45 | 1.78 | 0.43 | 1.73 | 18.81 | 53.87 | -55.44 | 65.17 | 0.8609 | 465.2 | 338.1 | |
| 3.03 | 17.66 | 2.93 | 17.01 | 18.49 | 53.80 | -55.51 | 65.55 | 0.8607 | 549.6 | 297.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
