SDO HMI 2011-05-01 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.25 | 8.47 | 1.50 | 10.48 | 17.32 | 44.57 | -63.65 | 69.04 | 0.9177 | -82.0 | -43.9 | |
|
previous
or next observation for the same group /

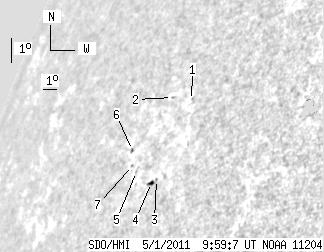

back to the solar disc SDO HMI 2011-05-01 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.95 | 19.06 | 46.32 | -61.89 | 66.76 | 0.9091 | -384.0 | -361.4 | |
| 0.00 | 0.80 | 0.00 | 1.00 | 19.26 | 44.86 | -63.36 | 66.91 | 0.9190 | -390.0 | -310.8 | |
| 0.00 | 1.16 | 0.00 | 1.38 | 16.57 | 45.45 | -62.77 | 69.64 | 0.9108 | -222.0 | -246.8 | |
| 1.25 | 2.68 | 1.50 | 3.22 | 16.50 | 45.14 | -63.07 | 69.79 | 0.9127 | -227.4 | -110.9 | |
| 0.00 | 0.71 | 0.00 | 0.90 | 16.94 | 43.79 | -64.43 | 69.62 | 0.9222 | 315.0 | 252.6 | |
| 0.00 | 1.34 | 0.00 | 1.76 | 17.67 | 43.00 | -65.21 | 69.02 | 0.9281 | 139.0 | 158.5 | |
| 0.00 | 0.98 | 0.00 | 1.27 | 17.16 | 43.35 | -64.87 | 69.48 | 0.9253 | 268.0 | 221.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
