SDO HMI 2011-05-01 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.81 | 93.19 | 26.17 | 397.02 | 20.42 | 187.43 | 80.86 | 291.25 | 0.9907 | 209.4 | 25.8 | |
|
previous
or next observation for the same group /

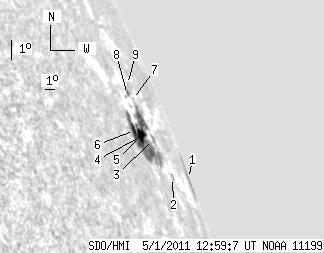

back to the solar disc SDO HMI 2011-05-01 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.07 | 0.00 | 174.63 | 19.94 | 192.14 | 85.57 | 290.23 | 0.9991 | 454.0 | 90.2 | |
| 0.00 | 2.14 | 0.00 | 7.88 | 19.57 | 186.75 | 80.18 | 290.43 | 0.9913 | -126.0 | -99.1 | |
| 0.00 | 2.85 | 0.00 | 9.33 | 20.73 | 185.63 | 79.06 | 291.72 | 0.9892 | -279.0 | -245.1 | |
| 2.05 | 68.31 | 5.85 | 191.10 | 20.79 | 184.28 | 77.71 | 291.97 | 0.9857 | -140.3 | -9.6 | |
| 4.82 | -4.00 | 12.88 | -4.00 | 20.67 | 183.46 | 76.89 | 291.96 | 0.9834 | 344.2 | 999999 | |
| 2.94 | -4.00 | 7.44 | -4.00 | 20.82 | 182.85 | 76.28 | 292.20 | 0.9816 | 479.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 2.66 | 21.96 | 184.56 | 77.99 | 293.10 | 0.9870 | -309.0 | -294.9 | |
| 0.00 | 2.68 | 0.00 | 7.61 | 22.09 | 184.01 | 77.44 | 293.30 | 0.9856 | 154.0 | 41.6 | |
| 0.00 | 1.25 | 0.00 | 3.81 | 22.47 | 184.76 | 78.19 | 293.59 | 0.9877 | -334.0 | -278.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
