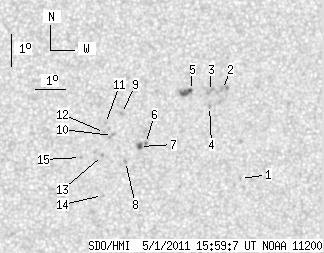

SDO HMI 2011-05-01 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.92 | 34.33 | 2.10 | 18.32 | -17.92 | 122.06 | 17.14 | 229.21 | 0.3723 | -262.8 | 145.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.88 | -19.70 | 124.72 | 19.80 | 229.52 | 0.4211 | 845.0 | 616.1 | |
| 0.00 | 5.35 | 0.00 | 2.87 | -16.95 | 123.79 | 18.87 | 233.94 | 0.3844 | 862.0 | 698.8 | |
| 0.00 | 3.48 | 0.00 | 1.86 | -17.02 | 123.36 | 18.45 | 233.20 | 0.3795 | 827.0 | 797.7 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -17.48 | 123.41 | 18.49 | 232.25 | 0.3843 | 879.0 | 744.8 | |
| 1.60 | 6.87 | 0.86 | 3.66 | -17.00 | 122.73 | 17.81 | 232.34 | 0.3711 | 994.3 | 916.3 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -18.68 | 121.40 | 16.49 | 226.66 | 0.3713 | -808.0 | -704.9 | |
| 2.32 | 3.21 | 1.24 | 1.71 | -18.77 | 121.21 | 16.30 | 226.14 | 0.3701 | -983.0 | -886.0 | |
| 0.00 | 1.34 | 0.00 | 0.71 | -19.25 | 120.79 | 15.88 | 224.46 | 0.3704 | -883.0 | -671.1 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -17.76 | 120.52 | 15.60 | 227.12 | 0.3511 | -778.0 | -652.6 | |
| 0.00 | 2.94 | 0.00 | 1.56 | -18.45 | 120.29 | 15.37 | 225.22 | 0.3558 | -852.0 | -657.2 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -18.08 | 120.02 | 15.11 | 225.53 | 0.3487 | -732.0 | -535.2 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -18.36 | 120.02 | 15.10 | 224.92 | 0.3516 | -845.0 | -576.9 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -19.08 | 120.01 | 15.10 | 223.43 | 0.3596 | -933.0 | -752.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -20.33 | 120.14 | 15.22 | 221.21 | 0.3753 | -470.0 | -521.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -19.15 | 119.29 | 14.38 | 221.94 | 0.3525 | -717.0 | -586.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
