SDO HMI 2011-05-01 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.46 | 37.28 | 2.39 | 20.03 | -18.17 | 122.06 | 18.25 | 230.36 | 0.3888 | -41.6 | -6.9 | |
|
previous
or next observation for the same group /

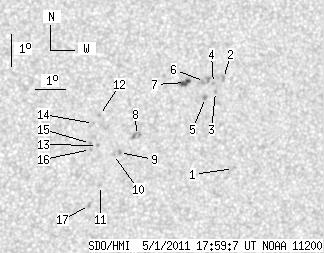

back to the solar disc SDO HMI 2011-05-01 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.73 | -19.70 | 124.71 | 20.90 | 230.92 | 0.4344 | 723.0 | 598.6 | |
| 0.00 | 2.41 | 0.00 | 1.30 | -16.91 | 124.02 | 20.21 | 235.72 | 0.4017 | 848.0 | 641.4 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -17.32 | 123.80 | 19.99 | 234.57 | 0.4021 | 704.0 | 572.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -17.07 | 123.70 | 19.89 | 234.98 | 0.3988 | 874.0 | 714.9 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -17.51 | 123.48 | 19.67 | 233.76 | 0.3997 | 975.0 | 830.5 | |
| 0.00 | 5.88 | 0.00 | 3.17 | -17.02 | 123.39 | 19.58 | 234.71 | 0.3943 | 887.0 | 785.8 | |
| 4.46 | 6.24 | 2.39 | 3.35 | -17.06 | 122.76 | 18.95 | 233.78 | 0.3865 | 1038.4 | 836.0 | |
| 0.00 | 4.64 | 0.00 | 2.49 | -18.75 | 121.30 | 17.49 | 228.11 | 0.3840 | -772.0 | -780.8 | |
| 0.00 | 1.96 | 0.00 | 1.05 | -19.29 | 120.79 | 16.98 | 226.21 | 0.3835 | -809.0 | -732.5 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -19.36 | 120.60 | 16.79 | 225.77 | 0.3820 | -827.0 | -597.5 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -20.34 | 120.27 | 16.46 | 223.33 | 0.3888 | -606.0 | -502.4 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -18.15 | 120.01 | 16.20 | 227.29 | 0.3624 | -966.0 | -760.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -19.08 | 120.04 | 16.23 | 225.39 | 0.3726 | -928.0 | -755.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -18.40 | 119.84 | 16.03 | 226.46 | 0.3630 | -813.0 | -704.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -19.03 | 119.80 | 15.99 | 225.10 | 0.3692 | -1013.0 | -847.4 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -19.21 | 119.82 | 16.01 | 224.75 | 0.3714 | -698.0 | -570.8 | |
| 0.00 | 2.14 | 0.00 | 1.15 | -20.97 | 119.97 | 16.16 | 221.65 | 0.3927 | -826.0 | -561.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
