SDO HMI 2011-05-01 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.37 | 15.25 | 2.34 | 8.13 | 14.44 | 115.04 | 11.23 | 329.51 | 0.3721 | -711.3 | -650.8 | |
|
previous
or next observation for the same group /

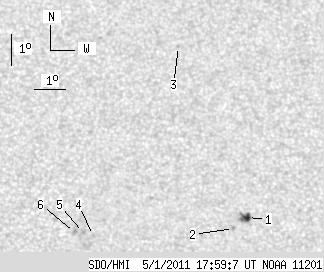

back to the solar disc SDO HMI 2011-05-01 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.37 | 7.49 | 2.34 | 4.02 | 14.23 | 116.98 | 13.17 | 324.82 | 0.3850 | -928.5 | -896.6 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 13.87 | 116.51 | 12.70 | 325.23 | 0.3760 | -1040.0 | -809.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 19.74 | 115.12 | 11.31 | 335.42 | 0.4455 | 589.0 | 449.8 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 13.59 | 112.08 | 8.26 | 335.30 | 0.3359 | -785.0 | -603.9 | |
| 0.00 | 1.87 | 0.00 | 0.98 | 13.68 | 111.76 | 7.95 | 336.24 | 0.3351 | -1012.0 | -837.7 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 13.68 | 111.48 | 7.67 | 336.99 | 0.3332 | -800.0 | -672.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
