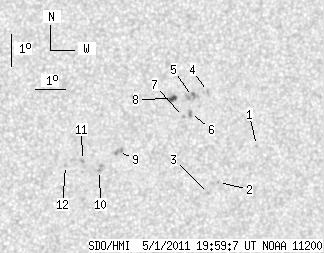

SDO HMI 2011-05-01 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.01 | 30.84 | 2.17 | 16.73 | -17.84 | 122.90 | 20.20 | 233.67 | 0.4099 | 289.4 | 268.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.48 | 125.95 | 23.24 | 235.92 | 0.4537 | 368.0 | 373.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -19.67 | 124.80 | 22.10 | 232.41 | 0.4489 | 672.0 | 481.3 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -20.02 | 124.51 | 21.80 | 231.41 | 0.4483 | 677.0 | 474.6 | |
| 0.00 | 1.78 | 0.00 | 0.97 | -16.85 | 124.05 | 21.35 | 237.18 | 0.4163 | 814.0 | 605.5 | |
| 0.00 | 7.94 | 0.00 | 4.31 | -17.02 | 123.56 | 20.86 | 236.27 | 0.4111 | 892.0 | 773.1 | |
| 0.00 | 2.67 | 0.00 | 1.46 | -17.54 | 123.56 | 20.86 | 235.16 | 0.4153 | 917.0 | 773.5 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.64 | 123.33 | 20.63 | 234.68 | 0.4132 | 742.0 | 617.2 | |
| 4.01 | 6.33 | 2.17 | 3.42 | -17.09 | 122.90 | 20.19 | 235.31 | 0.4030 | 1009.1 | 654.7 | |
| 0.00 | 4.01 | 0.00 | 2.16 | -18.78 | 121.27 | 18.57 | 229.63 | 0.3974 | -972.0 | -778.1 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -19.39 | 120.70 | 18.00 | 227.58 | 0.3965 | -834.0 | -666.0 | |
| 0.00 | 1.60 | 0.00 | 0.86 | -19.09 | 120.10 | 17.39 | 227.26 | 0.3863 | -857.0 | -736.0 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -19.26 | 119.55 | 16.84 | 226.05 | 0.3816 | -798.0 | -628.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
