SDO HMI 2011-05-01 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.10 | 21.84 | 2.21 | 11.63 | 14.03 | 114.20 | 11.50 | 328.45 | 0.3688 | -616.2 | -687.3 | |
|
previous
or next observation for the same group /

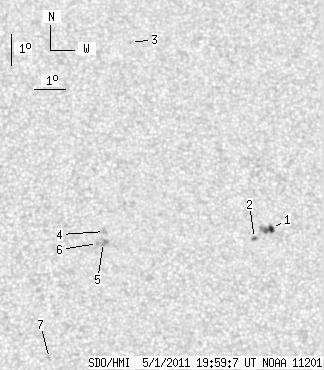

back to the solar disc SDO HMI 2011-05-01 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.94 | 8.29 | 1.59 | 4.47 | 14.22 | 117.09 | 14.39 | 322.41 | 0.3965 | -811.6 | -820.6 | |
| 1.16 | 2.14 | 0.62 | 1.15 | 13.89 | 116.53 | 13.82 | 322.98 | 0.3869 | -874.8 | -790.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 20.19 | 112.93 | 10.22 | 337.93 | 0.4452 | 699.0 | 476.5 | |
| 0.00 | 2.67 | 0.00 | 1.41 | 14.05 | 111.77 | 9.07 | 333.84 | 0.3483 | -844.0 | -642.1 | |
| 0.00 | 4.90 | 0.00 | 2.58 | 13.70 | 111.72 | 9.02 | 333.49 | 0.3428 | -928.0 | -817.9 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 13.66 | 111.53 | 8.83 | 333.93 | 0.3409 | -787.0 | -665.9 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 10.03 | 109.93 | 7.23 | 333.11 | 0.2751 | -750.0 | -598.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
