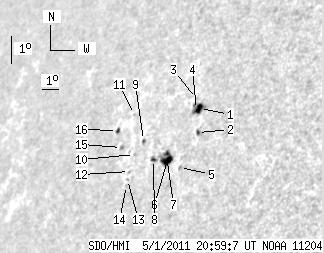

SDO HMI 2011-05-01 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.09 | 44.04 | 18.49 | 42.95 | 16.98 | 45.89 | -56.26 | 67.48 | 0.8627 | -146.5 | 87.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.75 | 10.70 | 3.54 | 10.12 | 17.97 | 47.37 | -54.78 | 65.92 | 0.8532 | -490.3 | 157.9 | |
| 1.43 | 2.14 | 1.33 | 1.99 | 17.18 | 47.62 | -54.53 | 66.73 | 0.8491 | -356.2 | -396.0 | |
| 0.00 | 0.80 | 0.00 | 0.77 | 18.31 | 47.04 | -55.11 | 65.64 | 0.8568 | -183.0 | -150.0 | |
| 0.27 | -1.00 | 0.25 | -1.00 | 17.94 | 47.21 | -54.94 | 66.00 | 0.8545 | 148.7 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.75 | 16.09 | 47.09 | -55.06 | 68.13 | 0.8508 | -635.0 | -480.9 | |
| 8.74 | 14.18 | 8.38 | 13.64 | 16.39 | 46.29 | -55.86 | 68.03 | 0.8583 | -496.2 | -66.1 | |
| 0.27 | -6.00 | 0.26 | -6.00 | 16.53 | 46.17 | -55.98 | 67.91 | 0.8595 | 81.7 | 999999 | |
| 1.87 | 3.39 | 1.84 | 3.32 | 16.44 | 45.47 | -56.68 | 68.21 | 0.8651 | -382.8 | -207.8 | |
| 1.07 | 1.69 | 1.08 | 1.71 | 17.11 | 44.57 | -57.58 | 67.73 | 0.8738 | 363.3 | 434.7 | |
| 0.00 | 1.52 | 0.00 | 1.54 | 16.68 | 44.24 | -57.91 | 68.30 | 0.8755 | 563.0 | 433.3 | |
| 0.00 | 0.80 | 0.00 | 0.84 | 18.01 | 43.56 | -58.59 | 67.02 | 0.8835 | 384.0 | 333.2 | |
| 0.00 | 0.98 | 0.00 | 1.00 | 16.14 | 44.20 | -57.95 | 68.91 | 0.8746 | 514.0 | 411.2 | |
| 0.00 | 0.62 | 0.00 | 0.63 | 15.88 | 44.20 | -57.95 | 69.19 | 0.8741 | 460.0 | 419.6 | |
| 0.00 | 0.80 | 0.00 | 0.81 | 15.69 | 44.22 | -57.93 | 69.40 | 0.8735 | 379.0 | 316.9 | |
| 0.00 | 1.96 | 0.00 | 2.06 | 16.97 | 43.31 | -58.84 | 68.24 | 0.8832 | 474.0 | 333.2 | |
| 1.69 | 2.59 | 1.81 | 2.77 | 17.55 | 42.76 | -59.39 | 67.75 | 0.8885 | 144.3 | 162.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
