SDO HMI 2011-05-01 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.24 | 43.95 | 19.35 | 42.16 | 17.00 | 45.91 | -55.68 | 67.28 | 0.8581 | -204.2 | 43.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

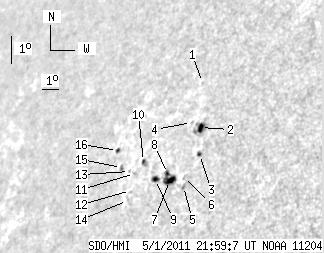

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.68 | 19.50 | 46.74 | -54.86 | 64.23 | 0.8580 | -420.0 | -344.2 | |
| 3.57 | 9.54 | 3.32 | 8.90 | 18.00 | 47.35 | -54.25 | 65.71 | 0.8489 | -516.5 | 53.9 | |
| 1.61 | 1.87 | 1.47 | 1.72 | 17.11 | 47.69 | -53.91 | 66.61 | 0.8436 | -516.5 | -369.0 | |
| 0.00 | 1.07 | 0.00 | 1.01 | 18.20 | 46.76 | -54.84 | 65.68 | 0.8543 | -180.0 | -100.4 | |
| 0.00 | 1.96 | 0.00 | 1.80 | 16.11 | 47.24 | -54.36 | 67.89 | 0.8448 | -655.0 | -501.6 | |
| 0.00 | 1.07 | 0.00 | 0.99 | 16.41 | 47.11 | -54.48 | 67.60 | 0.8466 | -494.0 | -466.6 | |
| 7.58 | 11.33 | 7.15 | 10.69 | 16.36 | 46.36 | -55.23 | 67.88 | 0.8529 | -559.9 | -137.8 | |
| 0.98 | -7.00 | 0.93 | -7.00 | 16.59 | 46.15 | -55.45 | 67.68 | 0.8553 | -229.6 | 999999 | |
| 3.12 | 4.90 | 3.01 | 4.73 | 16.44 | 45.54 | -56.05 | 68.04 | 0.8600 | -310.2 | -119.7 | |
| 1.69 | 3.92 | 1.69 | 3.89 | 17.08 | 44.56 | -57.04 | 67.61 | 0.8694 | 403.8 | 339.6 | |
| 0.00 | 1.52 | 0.00 | 1.52 | 16.71 | 44.20 | -57.40 | 68.12 | 0.8715 | 601.0 | 476.8 | |
| 0.00 | 0.54 | 0.00 | 0.53 | 16.17 | 44.22 | -57.38 | 68.72 | 0.8701 | 470.0 | 456.2 | |
| 0.00 | 0.89 | 0.00 | 0.90 | 16.80 | 43.86 | -57.73 | 68.12 | 0.8743 | 425.0 | 391.5 | |
| 0.00 | 0.80 | 0.00 | 0.80 | 15.85 | 44.19 | -57.41 | 69.08 | 0.8697 | 466.0 | 437.4 | |
| 0.00 | 1.87 | 0.00 | 1.93 | 16.96 | 43.30 | -58.29 | 68.09 | 0.8790 | 467.0 | 282.5 | |
| 1.69 | 1.96 | 1.78 | 2.07 | 17.54 | 42.76 | -58.84 | 67.60 | 0.8844 | 266.3 | 295.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
