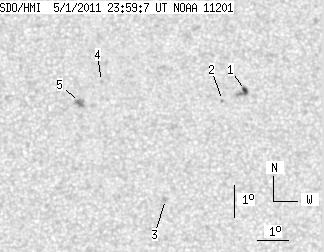

SDO HMI 2011-05-01 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.68 | 17.66 | 1.46 | 9.47 | 13.52 | 114.52 | 14.02 | 322.19 | 0.3851 | -815.1 | -786.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.68 | 6.33 | 1.46 | 3.45 | 14.16 | 117.21 | 16.72 | 318.09 | 0.4194 | -753.0 | -860.9 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 13.83 | 116.44 | 15.95 | 318.86 | 0.4074 | -792.0 | -590.4 | |
| 0.00 | 2.32 | 0.00 | 1.22 | 10.67 | 114.43 | 13.94 | 316.93 | 0.3483 | -700.0 | -655.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 14.36 | 112.59 | 12.10 | 327.24 | 0.3768 | -782.0 | -597.8 | |
| 0.00 | 6.60 | 0.00 | 3.50 | 13.68 | 111.86 | 11.36 | 327.83 | 0.3612 | -1077.0 | -860.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
