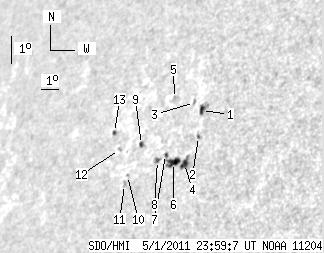

SDO HMI 2011-05-01 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.81 | 46.75 | 21.96 | 43.31 | 16.91 | 46.09 | -54.40 | 66.99 | 0.8470 | -218.2 | 8.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-01 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.30 | 6.87 | 2.98 | 6.20 | 17.97 | 47.43 | -53.06 | 65.35 | 0.8386 | -500.7 | -224.0 | |
| 1.07 | 1.61 | 0.96 | 1.43 | 17.12 | 47.63 | -52.86 | 66.26 | 0.8344 | -518.9 | -430.7 | |
| 0.00 | 1.87 | 0.00 | 1.72 | 18.26 | 46.93 | -53.56 | 65.20 | 0.8437 | -204.0 | -166.0 | |
| 5.26 | 7.40 | 4.72 | 6.63 | 16.27 | 47.23 | -53.26 | 67.36 | 0.8356 | -640.7 | -474.8 | |
| 0.00 | 3.12 | 0.00 | 2.95 | 18.46 | 45.74 | -54.75 | 65.37 | 0.8542 | 610.0 | 424.4 | |
| 7.14 | 10.53 | 6.50 | 9.59 | 16.34 | 46.62 | -53.87 | 67.48 | 0.8412 | -555.5 | -322.1 | |
| 0.98 | 2.23 | 0.91 | 2.06 | 16.63 | 46.07 | -54.42 | 67.32 | 0.8467 | -217.0 | -46.8 | |
| 2.05 | 3.12 | 1.91 | 2.91 | 16.46 | 45.70 | -54.79 | 67.63 | 0.8494 | -403.7 | -266.0 | |
| 2.14 | 2.59 | 2.07 | 2.50 | 17.05 | 44.55 | -55.94 | 67.33 | 0.8605 | 588.8 | 526.6 | |
| 0.00 | 1.43 | 0.00 | 1.38 | 16.08 | 44.19 | -56.31 | 68.52 | 0.8612 | 554.0 | 486.3 | |
| 0.00 | 2.50 | 0.00 | 2.42 | 15.79 | 44.14 | -56.35 | 68.86 | 0.8609 | 402.0 | 389.8 | |
| 0.00 | 1.34 | 0.00 | 1.34 | 16.96 | 43.32 | -57.17 | 67.78 | 0.8702 | 493.0 | 328.9 | |
| 1.87 | 2.14 | 1.91 | 2.18 | 17.55 | 42.73 | -57.76 | 67.30 | 0.8761 | 333.9 | 323.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
