SDO HMI 2011-05-02 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.41 | 22.13 | 1.33 | 12.17 | -18.02 | 122.11 | 22.18 | 235.53 | 0.4375 | -237.5 | -9.4 | |
|
previous
or next observation for the same group /

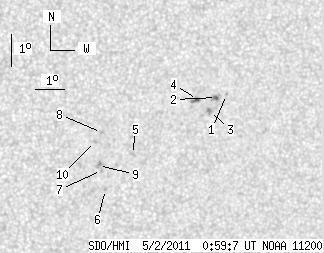

back to the solar disc SDO HMI 2011-05-02 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.45 | -16.91 | 124.22 | 24.28 | 239.97 | 0.4563 | 668.0 | 556.6 | |
| 0.98 | 4.10 | 0.54 | 2.28 | -17.01 | 123.89 | 23.95 | 239.47 | 0.4526 | 852.1 | 735.3 | |
| 0.00 | 3.21 | 0.00 | 1.78 | -17.45 | 123.71 | 23.77 | 238.42 | 0.4532 | 857.0 | 684.1 | |
| 1.43 | 3.39 | 0.79 | 1.87 | -17.09 | 123.24 | 23.31 | 238.69 | 0.4445 | 939.1 | 852.1 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -18.86 | 121.25 | 21.31 | 233.01 | 0.4323 | -766.0 | -541.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -19.97 | 120.47 | 20.53 | 229.91 | 0.4327 | -780.0 | -699.8 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -19.38 | 120.26 | 20.32 | 230.77 | 0.4247 | -709.0 | -545.0 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -18.20 | 120.11 | 20.17 | 232.93 | 0.4122 | -978.0 | -728.5 | |
| 0.00 | 2.59 | 0.00 | 1.41 | -19.23 | 120.13 | 20.20 | 230.91 | 0.4218 | -821.0 | -732.2 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -18.48 | 119.94 | 20.00 | 232.14 | 0.4126 | -889.0 | -681.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
