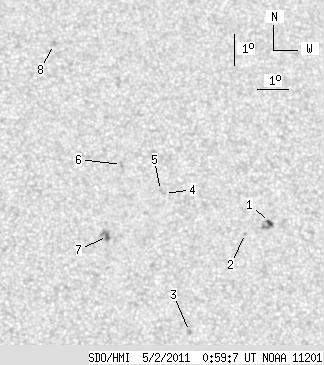

SDO HMI 2011-05-02 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.66 | 25.06 | 1.98 | 13.56 | 14.69 | 114.04 | 14.10 | 323.59 | 0.4019 | -620.2 | -529.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-02 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.77 | 7.49 | 1.51 | 4.10 | 14.18 | 117.22 | 17.28 | 317.19 | 0.4256 | -721.5 | -777.1 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 13.82 | 116.41 | 16.47 | 317.93 | 0.4127 | -765.0 | -589.6 | |
| 0.00 | 2.23 | 0.00 | 1.18 | 10.69 | 114.42 | 14.49 | 315.87 | 0.3545 | -810.0 | -676.0 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 15.04 | 113.88 | 13.94 | 324.50 | 0.4023 | -600.0 | -421.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 15.13 | 113.76 | 13.82 | 324.88 | 0.4024 | -694.0 | -546.2 | |
| 0.00 | 2.23 | 0.00 | 1.21 | 15.95 | 112.55 | 12.61 | 328.41 | 0.4025 | -729.0 | -595.0 | |
| 0.89 | 6.33 | 0.47 | 3.37 | 13.64 | 111.97 | 12.03 | 326.28 | 0.3664 | -1018.3 | -813.7 | |
| 0.00 | 3.12 | 0.00 | 1.72 | 19.83 | 110.61 | 10.67 | 336.72 | 0.4424 | 615.0 | 443.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
