SDO HMI 2011-05-02 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.50 | 20.16 | 1.38 | 10.94 | 13.93 | 114.20 | 15.91 | 319.23 | 0.4089 | -784.5 | -688.6 | |
|
previous
or next observation for the same group /

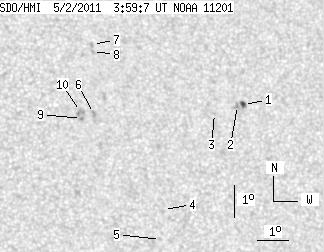

back to the solar disc SDO HMI 2011-05-02 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.50 | 3.21 | 1.38 | 1.77 | 14.12 | 117.30 | 19.01 | 314.35 | 0.4436 | -751.7 | -694.0 | |
| 0.00 | 3.21 | 0.00 | 1.77 | 14.08 | 117.10 | 18.81 | 314.59 | 0.4410 | -1012.0 | -711.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 13.81 | 116.32 | 18.03 | 315.33 | 0.4294 | -690.0 | -474.2 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 10.75 | 114.46 | 16.17 | 312.80 | 0.3746 | -380.0 | -488.6 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 9.81 | 114.32 | 16.03 | 311.13 | 0.3628 | -731.0 | -574.7 | |
| 0.00 | 2.77 | 0.00 | 1.49 | 13.73 | 112.39 | 14.11 | 322.09 | 0.3870 | -852.0 | -680.8 | |
| 0.00 | 2.14 | 0.00 | 1.17 | 15.94 | 112.51 | 14.22 | 325.24 | 0.4162 | -727.0 | -632.5 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 15.71 | 112.49 | 14.21 | 324.95 | 0.4131 | -752.0 | -595.5 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 13.56 | 112.00 | 13.71 | 322.60 | 0.3811 | -1147.0 | -967.5 | |
| 0.00 | 4.02 | 0.00 | 2.15 | 13.79 | 111.98 | 13.69 | 323.00 | 0.3837 | -815.0 | -744.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
