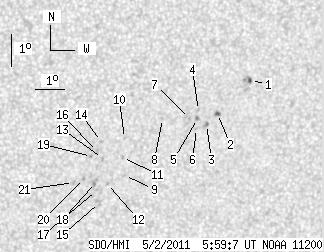

SDO HMI 2011-05-02 05:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.40 | 34.88 | 1.93 | 19.60 | -17.99 | 122.02 | 24.83 | 238.16 | 0.4724 | -171.9 | -123.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-02 05:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.70 | 4.64 | 0.97 | 2.65 | -15.92 | 125.19 | 28.00 | 244.73 | 0.5013 | 703.6 | 614.2 | |
| 1.70 | 2.14 | 0.96 | 1.22 | -16.98 | 124.18 | 26.99 | 242.03 | 0.4935 | 839.9 | 698.8 | |
| 0.00 | 2.41 | 0.00 | 1.37 | -17.33 | 123.85 | 26.66 | 241.11 | 0.4911 | 830.0 | 701.2 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -16.91 | 123.50 | 26.31 | 241.63 | 0.4839 | 824.0 | 574.6 | |
| 0.00 | 2.14 | 0.00 | 1.21 | -17.15 | 123.50 | 26.31 | 241.16 | 0.4854 | 1083.0 | 844.3 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -17.46 | 123.51 | 26.32 | 240.59 | 0.4876 | 557.0 | 493.1 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.16 | 123.22 | 26.03 | 240.92 | 0.4817 | 745.0 | 616.5 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.19 | 122.28 | 25.09 | 240.07 | 0.4693 | 850.0 | 671.6 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -19.00 | 121.22 | 24.03 | 235.64 | 0.4683 | -733.0 | -535.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.85 | 121.05 | 23.86 | 237.66 | 0.4575 | -688.0 | -443.2 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -18.44 | 121.06 | 23.87 | 236.54 | 0.4621 | -715.0 | -585.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.27 | 120.67 | 23.47 | 234.58 | 0.4634 | -731.0 | -687.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.49 | 120.38 | 23.19 | 235.75 | 0.4536 | -665.0 | -524.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.96 | 120.27 | 23.08 | 236.66 | 0.4482 | -817.0 | -663.6 | |
| 0.00 | 3.21 | 0.00 | 1.80 | -19.87 | 120.48 | 23.29 | 233.27 | 0.4659 | -639.0 | -590.7 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.28 | 120.17 | 22.98 | 235.95 | 0.4493 | -863.0 | -774.6 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.50 | 120.32 | 23.13 | 233.78 | 0.4608 | -732.0 | -569.6 | |
| 0.00 | 3.12 | 0.00 | 1.74 | -19.25 | 120.24 | 23.05 | 234.17 | 0.4579 | -897.0 | -766.2 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.44 | 119.99 | 22.80 | 235.44 | 0.4482 | -969.0 | -769.3 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.13 | 119.81 | 22.62 | 233.92 | 0.4515 | -816.0 | -693.4 | |
| 0.00 | 2.23 | 0.00 | 1.24 | -19.27 | 119.48 | 22.29 | 233.30 | 0.4485 | -711.0 | -646.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
