SDO HMI 2011-05-02 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.42 | 64.61 | 17.84 | 54.14 | 16.91 | 46.55 | -50.09 | 65.53 | 0.8082 | -213.8 | -76.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-02 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

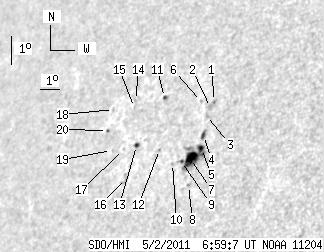

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 1.40 | 18.29 | 47.84 | -48.81 | 63.42 | 0.8011 | 371.0 | 263.9 | |
| 0.00 | 2.59 | 0.00 | 2.13 | 18.10 | 47.71 | -48.93 | 63.69 | 0.8016 | 107.0 | 72.6 | |
| 0.00 | 1.87 | 0.00 | 1.54 | 17.84 | 47.61 | -49.03 | 64.03 | 0.8016 | -725.0 | -560.6 | |
| 2.41 | 3.93 | 1.97 | 3.22 | 17.19 | 47.71 | -48.94 | 64.77 | 0.7985 | -458.5 | -406.4 | |
| 2.23 | 35.17 | 1.82 | 28.85 | 16.77 | 47.76 | -48.88 | 65.25 | 0.7965 | -773.1 | -268.6 | |
| 0.00 | 1.07 | 0.00 | 0.89 | 18.32 | 47.19 | -49.46 | 63.64 | 0.8073 | -319.0 | -265.0 | |
| 11.78 | -5.00 | 9.67 | -5.00 | 16.47 | 47.33 | -49.31 | 65.77 | 0.7996 | -710.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.80 | 15.60 | 47.53 | -49.12 | 66.74 | 0.7949 | -414.0 | -399.4 | |
| 0.89 | -5.00 | 0.74 | -5.00 | 16.40 | 46.92 | -49.73 | 66.01 | 0.8033 | -202.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.04 | 16.36 | 46.49 | -50.16 | 66.21 | 0.8073 | -391.0 | -209.7 | |
| 1.52 | 2.50 | 1.32 | 2.18 | 18.56 | 45.23 | -51.41 | 64.11 | 0.8258 | 553.7 | 309.5 | |
| 0.00 | 1.25 | 0.00 | 1.07 | 16.86 | 45.66 | -50.99 | 65.93 | 0.8166 | -305.0 | -148.6 | |
| 1.61 | 2.50 | 1.41 | 2.20 | 17.06 | 44.40 | -52.24 | 66.14 | 0.8286 | 527.1 | 419.9 | |
| 0.00 | 0.80 | 0.00 | 0.73 | 18.56 | 43.72 | -52.93 | 64.67 | 0.8390 | 506.0 | 389.7 | |
| 0.00 | 0.80 | 0.00 | 0.73 | 18.33 | 43.76 | -52.88 | 64.91 | 0.8379 | 456.0 | 457.0 | |
| 0.00 | 4.28 | 0.00 | 3.76 | 16.01 | 44.24 | -52.41 | 67.41 | 0.8270 | 551.0 | 382.2 | |
| 0.00 | 0.71 | 0.00 | 0.64 | 16.97 | 43.76 | -52.88 | 66.47 | 0.8340 | 487.0 | 418.6 | |
| 0.00 | 1.16 | 0.00 | 1.08 | 18.33 | 42.63 | -54.01 | 65.30 | 0.8475 | 353.0 | 243.8 | |
| 0.00 | 0.71 | 0.00 | 0.65 | 16.97 | 43.12 | -53.52 | 66.67 | 0.8396 | 271.0 | 308.5 | |
| 0.98 | 1.34 | 0.91 | 1.23 | 17.65 | 42.61 | -54.03 | 66.07 | 0.8458 | 350.9 | 320.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
