SDO HMI 2011-05-02 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.92 | 310.48 | 24.78 | 197.81 | 17.64 | 62.26 | -32.74 | 55.09 | 0.6302 | -650.0 | -261.0 | |
|
previous
or next observation for the same group /

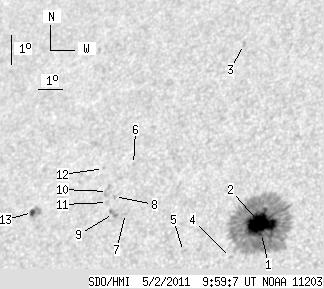

back to the solar disc SDO HMI 2011-05-02 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 279.17 | 0.73 | 176.14 | 17.20 | 63.06 | -31.94 | 55.12 | 0.6183 | -1210.3 | -344.7 | |
| 35.08 | -1.00 | 22.13 | -1.00 | 17.53 | 62.96 | -32.04 | 54.75 | 0.6218 | -1159.3 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.40 | 23.55 | 60.82 | -34.18 | 48.72 | 0.6877 | -520.0 | -428.1 | |
| 0.00 | 1.52 | 0.00 | 0.96 | 16.46 | 62.04 | -32.96 | 56.94 | 0.6248 | -504.0 | -342.0 | |
| 0.00 | 1.78 | 0.00 | 1.16 | 16.73 | 60.19 | -34.81 | 57.90 | 0.6475 | -386.0 | -403.9 | |
| 0.00 | 1.34 | 0.00 | 0.92 | 19.68 | 57.51 | -37.49 | 55.84 | 0.6949 | 588.0 | 426.1 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 18.08 | 57.61 | -37.39 | 57.84 | 0.6842 | 679.0 | 585.4 | |
| 0.00 | 1.25 | 0.00 | 0.86 | 18.66 | 57.01 | -37.99 | 57.47 | 0.6940 | 734.0 | 596.4 | |
| 0.00 | 4.46 | 0.00 | 3.04 | 18.10 | 57.12 | -37.88 | 58.12 | 0.6896 | 706.0 | 628.4 | |
| 0.00 | 4.73 | 0.00 | 3.27 | 18.84 | 56.68 | -38.32 | 57.45 | 0.6985 | 524.0 | 506.9 | |
| 0.00 | 2.05 | 0.00 | 1.41 | 18.47 | 56.78 | -38.22 | 57.85 | 0.6954 | 487.0 | 466.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 19.61 | 56.30 | -38.70 | 56.71 | 0.7069 | 524.0 | 465.4 | |
| 2.68 | 10.26 | 1.92 | 7.36 | 18.29 | 53.71 | -41.29 | 59.87 | 0.7267 | 572.8 | 600.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
