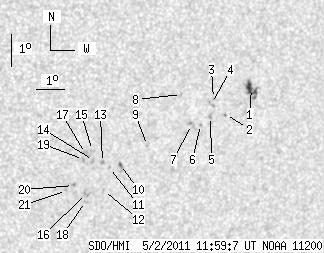

SDO HMI 2011-05-02 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.02 | 51.11 | 5.32 | 29.71 | -17.57 | 122.79 | 28.88 | 242.09 | 0.5232 | -80.5 | -176.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-02 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.50 | 12.76 | 4.45 | 7.58 | -16.01 | 125.73 | 31.82 | 246.78 | 0.5537 | 898.4 | 660.8 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -16.85 | 124.92 | 31.01 | 244.88 | 0.5467 | -673.0 | -398.0 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -16.37 | 124.39 | 30.49 | 245.41 | 0.5374 | -490.0 | -507.1 | |
| 0.00 | 3.12 | 0.00 | 1.83 | -16.53 | 124.34 | 30.44 | 245.11 | 0.5376 | -539.0 | -408.1 | |
| 0.00 | 2.23 | 0.00 | 1.31 | -16.93 | 124.38 | 30.48 | 244.42 | 0.5400 | 959.0 | 667.7 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -17.19 | 124.06 | 30.16 | 243.77 | 0.5371 | 724.0 | 681.5 | |
| 0.00 | 3.21 | 0.00 | 1.88 | -17.20 | 123.73 | 29.83 | 243.55 | 0.5328 | 856.0 | 706.9 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.29 | 123.21 | 29.31 | 244.85 | 0.5212 | 836.0 | 734.1 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -17.90 | 122.26 | 28.36 | 241.29 | 0.5173 | 759.0 | 474.5 | |
| 1.52 | 4.37 | 0.87 | 2.52 | -18.53 | 121.39 | 27.49 | 239.53 | 0.5099 | -708.6 | -559.2 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -18.63 | 121.02 | 27.12 | 239.04 | 0.5057 | -666.0 | -508.7 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -19.36 | 120.93 | 27.03 | 237.68 | 0.5094 | -502.0 | -384.1 | |
| 0.00 | 1.78 | 0.00 | 1.02 | -18.48 | 120.74 | 26.84 | 239.08 | 0.5011 | -751.0 | -636.8 | |
| 0.00 | 1.78 | 0.00 | 1.02 | -18.43 | 120.41 | 26.51 | 238.90 | 0.4965 | -624.0 | -595.0 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -18.12 | 120.33 | 26.42 | 239.40 | 0.4933 | -696.0 | -630.8 | |
| 0.00 | 3.75 | 0.00 | 2.14 | -19.47 | 120.34 | 26.44 | 236.98 | 0.5026 | -643.0 | -663.4 | |
| 0.00 | 3.84 | 0.00 | 2.18 | -18.22 | 120.09 | 26.19 | 239.02 | 0.4910 | -831.0 | -751.7 | |
| 0.00 | 1.96 | 0.00 | 1.13 | -19.72 | 120.35 | 26.45 | 236.54 | 0.5045 | -607.0 | -557.2 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -18.41 | 120.05 | 26.15 | 238.64 | 0.4917 | -915.0 | -727.2 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -19.23 | 119.83 | 25.93 | 236.96 | 0.4946 | -852.0 | -725.3 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -19.40 | 119.61 | 25.71 | 236.46 | 0.4929 | -683.0 | -600.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
