SDO HMI 2011-05-02 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.20 | 0.00 | 10.12 | 14.36 | 113.89 | 19.99 | 313.39 | 0.4570 | -724.8 | -605.4 | |
|
previous
or next observation for the same group /

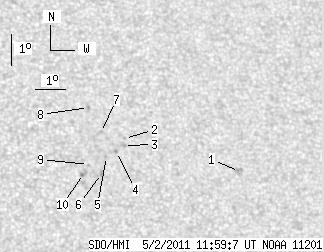

back to the solar disc SDO HMI 2011-05-02 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.02 | 0.00 | 2.29 | 13.97 | 117.44 | 23.54 | 308.07 | 0.4943 | -573.0 | -463.5 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 14.91 | 113.68 | 19.77 | 314.47 | 0.4600 | -565.0 | -455.9 | |
| 0.00 | 1.87 | 0.00 | 1.04 | 14.69 | 113.62 | 19.72 | 314.19 | 0.4570 | -743.0 | -609.3 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 14.49 | 113.37 | 19.47 | 314.23 | 0.4522 | -775.0 | -672.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 14.32 | 113.03 | 19.12 | 314.46 | 0.4465 | -813.0 | -664.8 | |
| 0.00 | 1.78 | 0.00 | 0.98 | 13.78 | 112.81 | 18.91 | 313.86 | 0.4384 | -834.0 | -722.0 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 15.09 | 112.90 | 18.99 | 315.88 | 0.4533 | -682.0 | -587.6 | |
| 0.00 | 1.61 | 0.00 | 0.89 | 15.88 | 112.57 | 18.67 | 317.61 | 0.4586 | -813.0 | -683.9 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 14.05 | 112.41 | 18.51 | 314.94 | 0.4368 | -596.0 | -438.9 | |
| 0.00 | 3.57 | 0.00 | 1.96 | 13.76 | 112.22 | 18.32 | 314.74 | 0.4315 | -854.0 | -712.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
