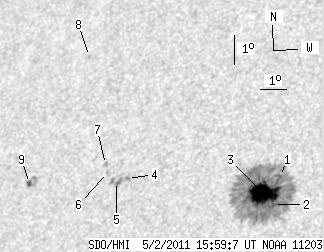

SDO HMI 2011-05-02 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.93 | 303.84 | 28.20 | 186.71 | 17.58 | 62.29 | -29.41 | 52.38 | 0.5925 | -845.1 | -274.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-02 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 282.51 | 0.60 | 172.50 | 18.05 | 63.28 | -28.42 | 50.88 | 0.5854 | -591.9 | -351.8 | |
| 1.69 | -1.00 | 1.03 | -1.00 | 17.14 | 63.22 | -28.48 | 52.22 | 0.5787 | -1166.7 | 999999 | |
| 41.03 | -1.00 | 25.05 | -1.00 | 17.51 | 62.80 | -28.90 | 52.08 | 0.5864 | -1234.8 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.74 | 18.20 | 57.59 | -34.11 | 55.44 | 0.6492 | 803.0 | 672.3 | |
| 0.00 | 6.16 | 0.00 | 4.02 | 18.12 | 57.18 | -34.52 | 55.84 | 0.6531 | 689.0 | 649.2 | |
| 0.00 | 1.61 | 0.00 | 1.06 | 18.43 | 56.76 | -34.94 | 55.73 | 0.6597 | 581.0 | 513.7 | |
| 0.00 | 2.23 | 0.00 | 1.47 | 18.70 | 56.62 | -35.08 | 55.48 | 0.6630 | 625.0 | 501.8 | |
| 0.00 | 1.16 | 0.00 | 0.81 | 22.34 | 54.99 | -36.71 | 52.03 | 0.7037 | 734.0 | 604.8 | |
| 2.23 | 7.49 | 1.52 | 5.11 | 18.20 | 53.72 | -37.98 | 58.06 | 0.6912 | 656.7 | 618.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
