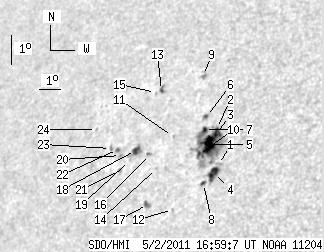

SDO HMI 2011-05-02 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.20 | 127.10 | 27.55 | 94.48 | 16.85 | 47.14 | -44.01 | 63.06 | 0.7479 | -184.5 | -148.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-02 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.94 | 0.00 | 2.13 | 16.19 | 48.54 | -42.61 | 63.23 | 0.7305 | -793.0 | -645.6 | |
| 1.16 | 73.59 | 0.85 | 53.96 | 17.37 | 48.12 | -43.03 | 61.95 | 0.7402 | -624.6 | -387.3 | |
| 1.52 | -2.00 | 1.11 | -2.00 | 17.18 | 48.13 | -43.01 | 62.19 | 0.7392 | -857.8 | 999999 | |
| 8.47 | 11.06 | 6.13 | 8.00 | 15.91 | 48.40 | -42.75 | 63.66 | 0.7307 | -802.4 | -554.1 | |
| 12.76 | -2.00 | 9.36 | -2.00 | 16.86 | 47.92 | -43.23 | 62.68 | 0.7400 | -930.3 | 999999 | |
| 1.61 | 2.77 | 1.19 | 2.06 | 17.79 | 47.56 | -43.59 | 61.71 | 0.7479 | -519.1 | -498.1 | |
| 1.78 | -2.00 | 1.32 | -2.00 | 17.36 | 47.60 | -43.55 | 62.21 | 0.7456 | -307.8 | 999999 | |
| 1.52 | 2.50 | 1.10 | 1.81 | 15.61 | 48.05 | -43.10 | 64.21 | 0.7332 | -340.8 | -260.5 | |
| 0.00 | 3.48 | 0.00 | 2.64 | 19.15 | 46.98 | -44.16 | 60.33 | 0.7598 | -632.0 | -452.9 | |
| 1.25 | -2.00 | 0.92 | -2.00 | 16.56 | 47.57 | -43.58 | 63.23 | 0.7423 | -314.5 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.54 | 17.21 | 46.23 | -44.92 | 63.06 | 0.7589 | 419.0 | 361.1 | |
| 0.00 | 0.98 | 0.00 | 0.72 | 14.84 | 46.90 | -44.24 | 65.72 | 0.7422 | 654.0 | 539.3 | |
| 1.87 | 3.48 | 1.46 | 2.72 | 18.75 | 45.21 | -45.93 | 61.65 | 0.7754 | 656.9 | 478.1 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 16.20 | 45.81 | -45.33 | 64.49 | 0.7590 | 592.0 | 560.6 | |
| 0.00 | 0.80 | 0.00 | 0.63 | 18.70 | 44.96 | -46.19 | 61.83 | 0.7777 | 632.0 | 549.6 | |
| 0.00 | 1.96 | 0.00 | 1.51 | 16.68 | 45.35 | -45.79 | 64.11 | 0.7656 | 672.0 | 553.1 | |
| 0.00 | 4.46 | 0.00 | 3.36 | 15.06 | 45.74 | -45.41 | 65.95 | 0.7554 | 855.0 | 633.9 | |
| 3.92 | 9.37 | 3.05 | 7.28 | 16.84 | 44.66 | -46.49 | 64.21 | 0.7732 | 780.2 | 586.7 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 16.53 | 44.49 | -46.66 | 64.66 | 0.7738 | 621.0 | 537.3 | |
| 0.00 | 1.25 | 0.00 | 0.98 | 16.71 | 44.01 | -47.14 | 64.64 | 0.7792 | 669.0 | 609.4 | |
| 0.00 | 1.87 | 0.00 | 1.47 | 16.23 | 44.12 | -47.03 | 65.18 | 0.7763 | 698.0 | 539.3 | |
| 1.34 | 1.69 | 1.06 | 1.34 | 16.92 | 43.80 | -47.35 | 64.47 | 0.7820 | 684.7 | 684.5 | |
| 0.00 | 1.87 | 0.00 | 1.49 | 16.97 | 43.46 | -47.69 | 64.56 | 0.7856 | 454.0 | 402.1 | |
| 0.00 | 1.16 | 0.00 | 0.95 | 17.63 | 42.56 | -48.59 | 64.13 | 0.7966 | 412.0 | 304.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
