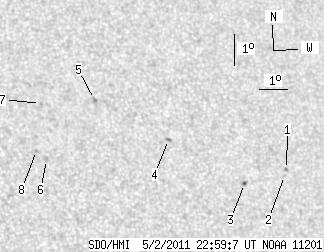

SDO HMI 2011-05-02 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 13.29 | 0.82 | 7.94 | 13.96 | 116.66 | 28.84 | 302.96 | 0.5587 | -546.5 | -536.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-02 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 1.06 | 13.45 | 121.46 | 33.63 | 298.21 | 0.6135 | -695.0 | -582.9 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 13.26 | 121.35 | 33.53 | 297.99 | 0.6111 | -645.0 | -551.0 | |
| 1.34 | 1.87 | 0.82 | 1.15 | 12.94 | 119.83 | 32.00 | 298.59 | 0.5904 | 647.9 | 573.3 | |
| 0.00 | 2.41 | 0.00 | 1.45 | 14.24 | 117.26 | 29.44 | 302.61 | 0.5676 | -811.0 | -660.5 | |
| 0.00 | 1.78 | 0.00 | 1.05 | 15.43 | 114.80 | 26.98 | 306.69 | 0.5474 | -683.0 | -619.0 | |
| 0.00 | 2.32 | 0.00 | 1.33 | 13.46 | 112.89 | 25.06 | 305.53 | 0.5082 | -652.0 | -560.5 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 15.24 | 112.89 | 25.07 | 308.37 | 0.5234 | -642.0 | -563.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 13.74 | 112.57 | 24.75 | 306.31 | 0.5067 | -677.0 | -515.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
