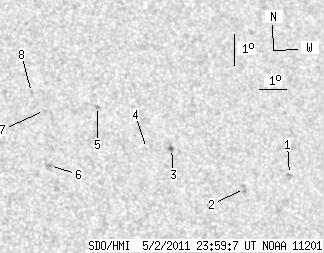

SDO HMI 2011-05-02 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.61 | 14.99 | 0.97 | 9.00 | 14.17 | 116.43 | 29.16 | 302.95 | 0.5643 | -491.6 | -317.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-02 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 1.07 | 13.54 | 121.53 | 34.25 | 297.92 | 0.6215 | -663.0 | -565.3 | |
| 0.00 | 2.59 | 0.00 | 1.60 | 13.03 | 119.77 | 32.50 | 298.37 | 0.5970 | 714.0 | 652.8 | |
| 1.61 | 3.12 | 0.97 | 1.89 | 14.20 | 117.28 | 30.01 | 302.06 | 0.5743 | -754.8 | -480.2 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 14.17 | 116.38 | 29.11 | 302.78 | 0.5631 | -406.0 | -308.4 | |
| 0.00 | 1.78 | 0.00 | 1.06 | 15.46 | 114.82 | 27.55 | 306.16 | 0.5543 | -712.0 | -604.8 | |
| 0.00 | 2.59 | 0.00 | 1.49 | 13.52 | 112.89 | 25.62 | 305.03 | 0.5154 | -779.0 | -641.0 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 15.27 | 112.94 | 25.66 | 307.77 | 0.5306 | -716.0 | -592.8 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 15.83 | 112.56 | 25.29 | 309.03 | 0.5311 | -624.0 | -525.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
