SDO HMI 2011-05-03 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.91 | 315.88 | 25.69 | 185.72 | 17.60 | 62.11 | -24.61 | 47.55 | 0.5394 | -680.3 | -308.8 | |
|
previous
or next observation for the same group /

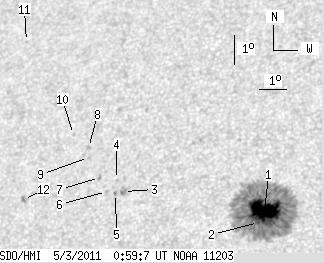

back to the solar disc SDO HMI 2011-05-03 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.93 | 297.60 | 25.12 | 174.19 | 17.52 | 62.53 | -24.19 | 47.25 | 0.5342 | -1219.6 | -380.2 | |
| 0.98 | -1.00 | 0.57 | -1.00 | 17.13 | 62.38 | -24.35 | 47.99 | 0.5323 | -1046.5 | 999999 | |
| 0.00 | 4.46 | 0.00 | 2.75 | 18.30 | 57.38 | -29.34 | 51.41 | 0.5975 | 834.0 | 737.3 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 18.71 | 57.04 | -29.68 | 51.16 | 0.6043 | 619.0 | 553.6 | |
| 0.00 | 1.61 | 0.00 | 0.99 | 18.25 | 57.09 | -29.63 | 51.74 | 0.6001 | 787.0 | 687.9 | |
| 0.00 | 1.43 | 0.00 | 0.89 | 18.33 | 56.75 | -29.97 | 51.94 | 0.6045 | 666.0 | 515.3 | |
| 0.00 | 1.96 | 0.00 | 1.23 | 18.80 | 56.40 | -30.32 | 51.61 | 0.6120 | 783.0 | 625.1 | |
| 0.00 | 2.05 | 0.00 | 1.30 | 19.81 | 55.78 | -30.94 | 50.80 | 0.6265 | 578.0 | 460.5 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 19.47 | 55.85 | -30.87 | 51.18 | 0.6232 | 705.0 | 611.2 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 20.26 | 55.11 | -31.61 | 50.77 | 0.6370 | 600.0 | 490.3 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 23.48 | 52.44 | -34.28 | 48.91 | 0.6878 | 520.0 | 385.0 | |
| 0.00 | 3.12 | 0.00 | 2.00 | 18.19 | 53.67 | -33.05 | 54.68 | 0.6373 | 862.0 | 663.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
