SDO HMI 2011-05-03 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.02 | 16.69 | 7.71 | 14.21 | 13.70 | 34.87 | -51.85 | 69.99 | 0.8152 | -316.1 | -183.4 | |
|
previous
or next observation for the same group /

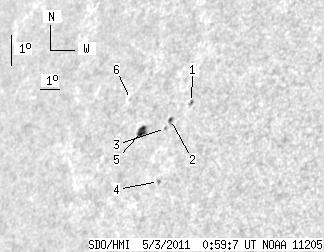

back to the solar disc SDO HMI 2011-05-03 00:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.25 | 2.41 | 1.03 | 1.99 | 14.42 | 36.48 | -50.24 | 68.59 | 0.8019 | -358.7 | -411.4 | |
| 1.25 | 2.23 | 1.05 | 1.87 | 13.94 | 35.59 | -51.13 | 69.47 | 0.8091 | 511.6 | 550.5 | |
| 0.00 | 1.16 | 0.00 | 0.98 | 13.66 | 35.43 | -51.30 | 69.85 | 0.8099 | 452.0 | 385.7 | |
| 0.00 | 1.79 | 0.00 | 1.48 | 11.99 | 35.56 | -51.17 | 71.82 | 0.8042 | -568.0 | -507.5 | |
| 6.52 | 7.94 | 5.63 | 6.86 | 13.64 | 34.22 | -52.50 | 70.26 | 0.8213 | -590.2 | -551.9 | |
| 0.00 | 1.16 | 0.00 | 1.03 | 14.70 | 33.29 | -53.44 | 69.30 | 0.8326 | -114.0 | -190.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
