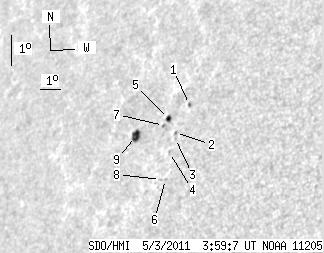

SDO HMI 2011-05-03 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.39 | 18.66 | 6.93 | 15.20 | 13.61 | 35.18 | -49.89 | 69.47 | 0.7959 | -203.9 | -56.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 1.07 | 14.51 | 36.57 | -48.50 | 67.89 | 0.7849 | -469.0 | -412.1 | |
| 0.00 | 1.07 | 0.00 | 0.85 | 13.64 | 36.15 | -48.92 | 69.09 | 0.7863 | 619.0 | 425.8 | |
| 0.00 | 0.98 | 0.00 | 0.78 | 13.45 | 36.21 | -48.86 | 69.31 | 0.7852 | 371.0 | 317.5 | |
| 0.00 | 0.98 | 0.00 | 0.78 | 13.02 | 36.04 | -49.03 | 69.90 | 0.7856 | 152.0 | 202.3 | |
| 2.05 | 2.95 | 1.66 | 2.38 | 14.11 | 35.68 | -49.39 | 68.69 | 0.7925 | 556.7 | 504.7 | |
| 0.00 | 0.89 | 0.00 | 0.71 | 12.17 | 36.07 | -49.00 | 70.93 | 0.7828 | -693.0 | -644.7 | |
| 0.00 | 1.43 | 0.00 | 1.16 | 13.90 | 35.51 | -49.56 | 69.01 | 0.7936 | 368.0 | 292.8 | |
| 0.00 | 0.89 | 0.00 | 0.71 | 12.18 | 35.83 | -49.24 | 71.00 | 0.7853 | -618.0 | -531.7 | |
| 6.34 | 8.13 | 5.27 | 6.76 | 13.62 | 34.22 | -50.85 | 69.77 | 0.8054 | -663.2 | -451.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
