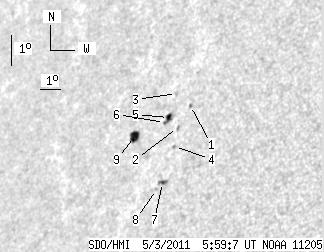

SDO HMI 2011-05-03 05:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.23 | 25.90 | 9.82 | 20.54 | 13.56 | 35.34 | -48.63 | 69.10 | 0.7832 | -231.9 | -120.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 05:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 1.11 | 14.52 | 36.63 | -47.34 | 67.45 | 0.7731 | -511.0 | -397.9 | |
| 0.00 | 1.79 | 0.00 | 1.39 | 13.84 | 36.22 | -47.75 | 68.44 | 0.7751 | 577.0 | 413.0 | |
| 0.00 | 1.16 | 0.00 | 0.92 | 14.94 | 35.86 | -48.12 | 67.23 | 0.7824 | -439.0 | -385.9 | |
| 0.00 | 1.52 | 0.00 | 1.18 | 13.24 | 36.24 | -47.73 | 69.17 | 0.7730 | 468.0 | 417.1 | |
| 2.86 | 5.98 | 2.26 | 4.73 | 14.19 | 35.70 | -48.27 | 68.20 | 0.7815 | 552.1 | 433.6 | |
| 0.89 | -5.00 | 0.71 | -5.00 | 14.04 | 35.56 | -48.42 | 68.44 | 0.7825 | 353.0 | 999999 | |
| 1.16 | 3.93 | 0.90 | 3.05 | 12.13 | 35.96 | -48.01 | 70.66 | 0.7724 | -745.1 | -631.3 | |
| 0.00 | 1.16 | 0.00 | 0.91 | 11.92 | 35.73 | -48.24 | 71.00 | 0.7742 | -561.0 | -404.4 | |
| 7.32 | 8.93 | 5.95 | 7.25 | 13.67 | 34.23 | -49.74 | 69.36 | 0.7946 | -638.3 | -465.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
