SDO HMI 2011-05-03 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.10 | 191.83 | 26.25 | 126.31 | 16.73 | 47.53 | -35.89 | 58.69 | 0.6589 | -174.7 | -120.6 | |
|
previous
or next observation for the same group /

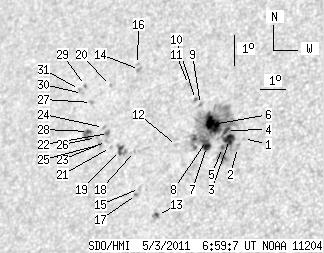

back to the solar disc SDO HMI 2011-05-03 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.69 | 16.48 | 49.58 | -33.85 | 57.66 | 0.6345 | -819.0 | -639.1 | |
| 0.00 | 2.77 | 0.00 | 1.77 | 16.20 | 49.40 | -34.02 | 58.17 | 0.6346 | -707.0 | -613.3 | |
| 8.57 | 138.60 | 5.52 | 90.11 | 16.47 | 49.04 | -34.38 | 58.05 | 0.6405 | -1003.3 | -349.3 | |
| 3.04 | -3.00 | 1.96 | -3.00 | 16.77 | 48.87 | -34.56 | 57.77 | 0.6443 | -855.2 | 999999 | |
| 0.89 | -3.00 | 0.58 | -3.00 | 16.22 | 48.83 | -34.60 | 58.55 | 0.6414 | -724.1 | 999999 | |
| 15.00 | -3.00 | 9.78 | -3.00 | 16.99 | 48.28 | -35.14 | 57.88 | 0.6523 | -1019.2 | 999999 | |
| 4.47 | -3.00 | 2.90 | -3.00 | 16.28 | 48.20 | -35.23 | 58.90 | 0.6489 | -644.2 | 999999 | |
| 0.54 | -3.00 | 0.35 | -3.00 | 16.47 | 48.16 | -35.27 | 58.66 | 0.6506 | 210.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.88 | 17.66 | 47.66 | -35.76 | 57.40 | 0.6633 | -566.0 | -453.9 | |
| 0.00 | 1.70 | 0.00 | 1.12 | 17.83 | 47.43 | -36.00 | 57.33 | 0.6670 | -500.0 | -341.9 | |
| 0.00 | 1.61 | 0.00 | 1.08 | 18.33 | 47.03 | -36.40 | 56.93 | 0.6744 | -756.0 | -525.8 | |
| 0.00 | 1.88 | 0.00 | 1.24 | 16.36 | 47.01 | -36.41 | 59.57 | 0.6628 | 410.0 | 414.5 | |
| 1.61 | 4.02 | 1.05 | 2.63 | 14.14 | 46.72 | -36.70 | 62.82 | 0.6538 | 824.0 | 661.9 | |
| 0.00 | 2.50 | 0.00 | 1.73 | 18.92 | 44.90 | -38.52 | 57.54 | 0.7006 | 793.0 | 648.5 | |
| 0.00 | 2.05 | 0.00 | 1.36 | 15.04 | 45.84 | -37.59 | 62.10 | 0.6688 | 711.0 | 533.8 | |
| 0.00 | 1.16 | 0.00 | 0.81 | 19.09 | 44.77 | -38.65 | 57.41 | 0.7029 | 453.0 | 419.6 | |
| 0.00 | 1.61 | 0.00 | 1.07 | 14.85 | 45.76 | -37.67 | 62.41 | 0.6688 | 824.0 | 668.7 | |
| 0.00 | 1.25 | 0.00 | 0.84 | 16.24 | 45.38 | -38.05 | 60.75 | 0.6805 | 814.0 | 642.3 | |
| 3.30 | 7.77 | 2.25 | 5.28 | 16.30 | 44.80 | -38.63 | 61.01 | 0.6873 | 765.4 | 709.9 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 18.44 | 43.84 | -39.59 | 58.79 | 0.7091 | 636.0 | 553.2 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 16.42 | 44.36 | -39.06 | 61.11 | 0.6927 | 682.0 | 546.1 | |
| 1.07 | 3.04 | 0.74 | 2.09 | 16.87 | 44.17 | -39.26 | 60.62 | 0.6972 | 611.8 | 615.9 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 16.62 | 44.15 | -39.27 | 60.97 | 0.6961 | 670.0 | 586.9 | |
| 0.00 | 1.70 | 0.00 | 1.17 | 17.08 | 43.91 | -39.51 | 60.50 | 0.7011 | 576.0 | 439.9 | |
| 0.00 | 1.25 | 0.00 | 0.86 | 16.53 | 43.93 | -39.50 | 61.21 | 0.6981 | 735.0 | 588.8 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 16.77 | 43.70 | -39.72 | 61.02 | 0.7017 | 629.0 | 563.3 | |
| 0.00 | 1.96 | 0.00 | 1.38 | 17.92 | 43.19 | -40.23 | 59.82 | 0.7132 | 792.0 | 563.0 | |
| 1.61 | 6.79 | 1.12 | 4.74 | 16.98 | 43.32 | -40.10 | 60.96 | 0.7070 | 714.4 | 690.2 | |
| 0.00 | 1.16 | 0.00 | 0.83 | 18.49 | 42.78 | -40.65 | 59.33 | 0.7205 | 553.0 | 479.5 | |
| 0.00 | 1.16 | 0.00 | 0.83 | 18.24 | 42.73 | -40.70 | 59.69 | 0.7197 | 568.0 | 422.0 | |
| 0.00 | 1.61 | 0.00 | 1.15 | 18.37 | 42.56 | -40.86 | 59.61 | 0.7222 | 420.0 | 346.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
