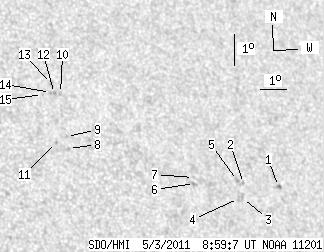

SDO HMI 2011-05-03 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.70 | 0.00 | 13.75 | 14.31 | 116.42 | 34.09 | 299.29 | 0.6244 | -344.5 | -282.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.50 | 0.00 | 1.67 | 13.29 | 121.16 | 38.83 | 294.78 | 0.6745 | -742.0 | -622.9 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 13.33 | 119.78 | 37.45 | 295.59 | 0.6584 | 655.0 | 520.6 | |
| 0.00 | 1.43 | 0.00 | 0.93 | 12.85 | 119.66 | 37.33 | 294.98 | 0.6545 | 502.0 | 513.1 | |
| 0.00 | 1.79 | 0.00 | 1.16 | 12.84 | 119.50 | 37.17 | 295.06 | 0.6526 | 558.0 | 469.5 | |
| 0.00 | 1.61 | 0.00 | 1.05 | 13.41 | 119.56 | 37.23 | 295.83 | 0.6562 | 733.0 | 560.6 | |
| 0.00 | 2.50 | 0.00 | 1.60 | 13.25 | 117.87 | 35.54 | 296.60 | 0.6350 | -827.0 | -500.8 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 13.44 | 117.87 | 35.53 | 296.87 | 0.6360 | -355.0 | -448.3 | |
| 0.00 | 1.43 | 0.00 | 0.87 | 14.18 | 113.32 | 30.99 | 301.15 | 0.5855 | -744.0 | -562.9 | |
| 0.00 | 0.89 | 0.00 | 0.55 | 14.56 | 113.31 | 30.98 | 301.73 | 0.5879 | -786.0 | -668.9 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 15.93 | 113.31 | 30.98 | 303.75 | 0.5976 | -506.0 | -471.4 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 14.35 | 112.91 | 30.58 | 301.74 | 0.5817 | -823.0 | -687.6 | |
| 0.00 | 1.43 | 0.00 | 0.88 | 15.92 | 113.09 | 30.76 | 303.92 | 0.5949 | -746.0 | -654.6 | |
| 0.00 | 2.68 | 0.00 | 1.65 | 16.24 | 113.04 | 30.71 | 304.43 | 0.5966 | -618.0 | -497.7 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 15.95 | 112.95 | 30.62 | 304.08 | 0.5935 | -761.0 | -656.9 | |
| 0.00 | 0.89 | 0.00 | 0.55 | 15.87 | 112.65 | 30.32 | 304.22 | 0.5894 | -708.0 | -589.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
