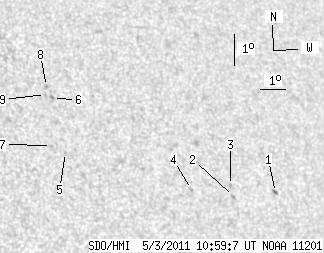

SDO HMI 2011-05-03 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 13.05 | 0.36 | 8.39 | 14.30 | 116.54 | 35.30 | 298.46 | 0.6385 | -412.1 | -305.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.88 | 0.36 | 1.28 | 13.26 | 121.30 | 40.07 | 294.09 | 0.6886 | -732.5 | -614.9 | |
| 0.00 | 1.70 | 0.00 | 1.13 | 13.06 | 119.58 | 38.34 | 294.70 | 0.6675 | 673.0 | 575.3 | |
| 0.00 | 1.34 | 0.00 | 0.89 | 13.40 | 119.52 | 38.29 | 295.21 | 0.6685 | 812.0 | 579.3 | |
| 0.00 | 1.70 | 0.00 | 1.10 | 13.21 | 117.96 | 36.72 | 295.82 | 0.6490 | -704.0 | -475.9 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 14.19 | 113.36 | 32.12 | 300.29 | 0.5993 | -797.0 | -658.2 | |
| 0.00 | 2.05 | 0.00 | 1.28 | 15.91 | 113.17 | 31.93 | 302.95 | 0.6084 | -675.0 | -635.7 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 14.39 | 112.88 | 31.64 | 300.96 | 0.5948 | -737.0 | -675.3 | |
| 0.00 | 1.61 | 0.00 | 1.00 | 16.29 | 113.01 | 31.78 | 303.61 | 0.6092 | -696.0 | -581.2 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 16.03 | 112.93 | 31.70 | 303.30 | 0.6065 | -737.0 | -651.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
