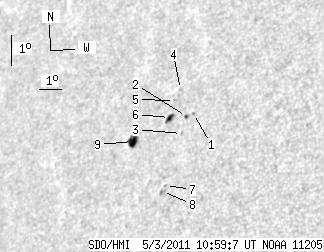

SDO HMI 2011-05-03 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.23 | 23.13 | 9.31 | 17.47 | 13.90 | 35.24 | -46.00 | 67.71 | 0.7569 | -262.6 | -232.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.59 | 14.45 | 36.76 | -44.48 | 66.39 | 0.7428 | -300.0 | -262.0 | |
| 1.16 | 1.61 | 0.86 | 1.19 | 14.37 | 36.47 | -44.77 | 66.61 | 0.7455 | 580.5 | 478.8 | |
| 0.00 | 1.07 | 0.00 | 0.79 | 13.84 | 36.38 | -44.85 | 67.33 | 0.7444 | 455.0 | 383.4 | |
| 0.00 | 1.34 | 0.00 | 1.01 | 15.25 | 35.97 | -45.27 | 65.71 | 0.7542 | -551.0 | -406.3 | |
| 0.00 | 0.98 | 0.00 | 0.74 | 14.91 | 35.79 | -45.44 | 66.21 | 0.7547 | -356.0 | -289.9 | |
| 3.66 | 5.18 | 2.75 | 3.89 | 14.38 | 35.71 | -45.52 | 66.92 | 0.7536 | 536.7 | 392.9 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 12.22 | 36.06 | -45.18 | 69.55 | 0.7422 | -660.0 | -557.1 | |
| 0.00 | 1.79 | 0.00 | 1.32 | 12.03 | 35.96 | -45.27 | 69.82 | 0.7426 | -743.0 | -635.8 | |
| 7.41 | 9.73 | 5.70 | 7.48 | 13.69 | 34.22 | -47.02 | 68.37 | 0.7669 | -673.7 | -524.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
