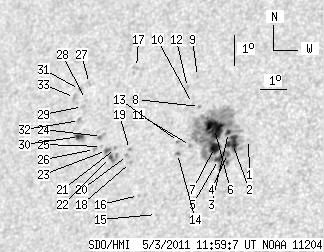

SDO HMI 2011-05-03 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.10 | 244.86 | 37.38 | 155.43 | 16.72 | 47.75 | -32.93 | 56.62 | 0.6252 | -249.7 | -121.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 11:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.66 | 16.54 | 49.71 | -30.97 | 55.37 | 0.6018 | -795.0 | -592.4 | |
| 11.43 | 192.67 | 7.11 | 121.00 | 16.44 | 49.14 | -31.55 | 55.99 | 0.6076 | -984.8 | -293.1 | |
| 2.41 | -2.00 | 1.51 | -2.00 | 16.80 | 48.93 | -31.76 | 55.65 | 0.6126 | -835.1 | 999999 | |
| 0.45 | -2.00 | 0.28 | -2.00 | 16.12 | 49.01 | -31.67 | 56.54 | 0.6068 | -958.8 | 999999 | |
| 3.12 | -2.00 | 1.95 | -2.00 | 15.94 | 48.71 | -31.97 | 57.04 | 0.6091 | -651.5 | 999999 | |
| 23.75 | -2.00 | 14.96 | -2.00 | 16.95 | 48.37 | -32.31 | 55.87 | 0.6199 | -910.7 | 999999 | |
| 8.39 | -2.00 | 5.26 | -2.00 | 16.33 | 48.49 | -32.19 | 56.65 | 0.6143 | -807.5 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 17.69 | 47.66 | -33.03 | 55.41 | 0.6330 | -484.0 | -383.5 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 18.68 | 47.37 | -33.32 | 54.29 | 0.6431 | -606.0 | -494.0 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 17.80 | 47.37 | -33.31 | 55.48 | 0.6370 | -377.0 | -255.3 | |
| 0.00 | 1.43 | 0.00 | 0.91 | 16.43 | 47.57 | -33.11 | 57.21 | 0.6256 | 189.0 | 11.8 | |
| 0.00 | 1.43 | 0.00 | 0.92 | 18.33 | 47.06 | -33.62 | 54.99 | 0.6440 | -651.0 | -472.6 | |
| 0.00 | 1.61 | 0.00 | 1.02 | 16.58 | 47.09 | -33.60 | 57.36 | 0.6320 | 714.0 | 548.8 | |
| 1.25 | 2.05 | 0.79 | 1.31 | 16.19 | 47.13 | -33.56 | 57.87 | 0.6291 | 727.7 | 634.4 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 14.26 | 46.69 | -34.00 | 60.94 | 0.6222 | 795.0 | 629.3 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 14.90 | 45.89 | -34.79 | 60.56 | 0.6355 | 693.0 | 547.3 | |
| 0.00 | 2.05 | 0.00 | 1.37 | 19.07 | 44.91 | -35.78 | 55.57 | 0.6722 | 606.0 | 411.6 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 15.98 | 45.37 | -35.31 | 59.40 | 0.6479 | 724.0 | 563.3 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 16.40 | 45.25 | -35.44 | 58.91 | 0.6518 | 742.0 | 648.4 | |
| 0.00 | 2.05 | 0.00 | 1.34 | 16.21 | 45.21 | -35.48 | 59.19 | 0.6511 | 578.0 | 578.4 | |
| 0.00 | 1.43 | 0.00 | 0.94 | 16.45 | 44.69 | -35.99 | 59.20 | 0.6585 | 735.0 | 666.4 | |
| 1.96 | 5.89 | 1.29 | 3.86 | 16.17 | 44.56 | -36.13 | 59.67 | 0.6583 | 710.2 | 730.0 | |
| 2.14 | 3.48 | 1.41 | 2.29 | 16.40 | 44.35 | -36.34 | 59.49 | 0.6620 | 748.3 | 579.0 | |
| 0.00 | 3.12 | 0.00 | 2.07 | 16.87 | 44.05 | -36.64 | 59.06 | 0.6681 | 656.0 | 574.3 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 16.54 | 44.12 | -36.56 | 59.45 | 0.6654 | 619.0 | 541.5 | |
| 0.00 | 1.87 | 0.00 | 1.24 | 16.46 | 43.87 | -36.82 | 59.73 | 0.6678 | 733.0 | 622.9 | |
| 0.00 | 1.70 | 0.00 | 1.16 | 18.63 | 43.14 | -37.54 | 57.32 | 0.6883 | 662.0 | 482.8 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 18.11 | 43.12 | -37.57 | 58.02 | 0.6856 | 629.0 | 599.3 | |
| 0.00 | 1.96 | 0.00 | 1.33 | 17.88 | 43.05 | -37.63 | 58.35 | 0.6850 | 741.0 | 500.9 | |
| 4.20 | 5.80 | 2.82 | 3.90 | 16.91 | 43.17 | -37.52 | 59.56 | 0.6781 | 739.0 | 698.8 | |
| 0.00 | 1.25 | 0.00 | 0.85 | 18.45 | 42.79 | -37.90 | 57.78 | 0.6911 | 589.0 | 504.3 | |
| 0.00 | 2.59 | 0.00 | 1.75 | 17.43 | 43.04 | -37.64 | 58.95 | 0.6825 | 706.0 | 567.1 | |
| 0.00 | 3.04 | 0.00 | 2.07 | 18.19 | 42.65 | -38.04 | 58.20 | 0.6911 | 477.0 | 413.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
