SDO HMI 2011-05-03 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 15.09 | 0.25 | 9.88 | 14.31 | 116.40 | 36.82 | 297.47 | 0.6563 | -441.6 | -367.5 | |
|
previous
or next observation for the same group /

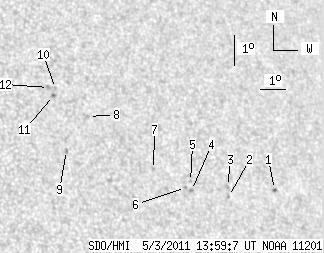

back to the solar disc SDO HMI 2011-05-03 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 1.16 | 0.25 | 0.81 | 13.34 | 121.44 | 41.86 | 293.33 | 0.7094 | -722.0 | -606.1 | |
| 0.00 | 1.16 | 0.00 | 0.79 | 13.03 | 119.48 | 39.90 | 293.85 | 0.6856 | 697.0 | 631.5 | |
| 0.00 | 1.34 | 0.00 | 0.91 | 13.35 | 119.51 | 39.92 | 294.28 | 0.6873 | 637.0 | 463.4 | |
| 0.00 | 1.52 | 0.00 | 1.01 | 13.15 | 118.02 | 38.44 | 294.78 | 0.6690 | -755.0 | -606.9 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 13.44 | 118.04 | 38.45 | 295.17 | 0.6706 | -571.0 | -518.9 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 13.24 | 117.80 | 38.21 | 295.02 | 0.6668 | -646.0 | -504.3 | |
| 0.00 | 1.07 | 0.00 | 0.70 | 13.76 | 116.64 | 37.05 | 296.40 | 0.6557 | -529.0 | -406.3 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 15.35 | 114.43 | 34.84 | 300.03 | 0.6386 | -591.0 | -478.8 | |
| 0.00 | 1.61 | 0.00 | 1.01 | 14.22 | 113.39 | 33.80 | 299.13 | 0.6196 | -765.0 | -663.4 | |
| 0.00 | 1.07 | 0.00 | 0.68 | 16.20 | 113.33 | 33.75 | 301.99 | 0.6313 | -529.0 | -520.6 | |
| 0.00 | 1.43 | 0.00 | 0.91 | 15.97 | 113.21 | 33.63 | 301.76 | 0.6284 | -787.0 | -672.9 | |
| 0.00 | 1.61 | 0.00 | 1.02 | 16.22 | 113.07 | 33.49 | 302.21 | 0.6284 | -668.0 | -554.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
