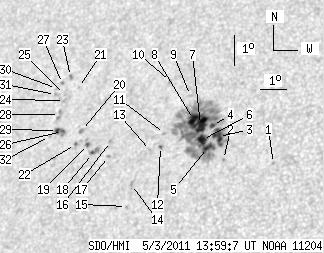

SDO HMI 2011-05-03 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.04 | 245.01 | 31.85 | 153.33 | 16.68 | 47.91 | -31.68 | 55.71 | 0.6106 | -241.5 | -155.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.59 | 15.52 | 51.36 | -28.23 | 54.49 | 0.5621 | 669.0 | 513.4 | |
| 0.00 | 1.16 | 0.00 | 0.71 | 15.71 | 49.53 | -30.06 | 55.82 | 0.5850 | -802.0 | -701.8 | |
| 10.62 | 199.32 | 6.53 | 123.64 | 16.46 | 49.22 | -30.37 | 55.00 | 0.5941 | -995.1 | -316.5 | |
| 1.96 | -3.00 | 1.21 | -3.00 | 16.82 | 48.93 | -30.65 | 54.71 | 0.6001 | -842.5 | 999999 | |
| 4.55 | -3.00 | 2.80 | -3.00 | 16.12 | 48.88 | -30.71 | 55.78 | 0.5956 | -942.2 | 999999 | |
| 5.89 | -3.00 | 3.64 | -3.00 | 16.38 | 48.65 | -30.94 | 55.58 | 0.6002 | -944.1 | 999999 | |
| 13.03 | -3.00 | 8.09 | -3.00 | 16.87 | 48.48 | -31.10 | 55.02 | 0.6056 | -972.8 | 999999 | |
| 7.14 | -3.00 | 4.46 | -3.00 | 17.04 | 48.19 | -31.39 | 55.02 | 0.6101 | -823.2 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.12 | 17.83 | 47.93 | -31.66 | 54.14 | 0.6188 | -617.0 | -425.1 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 18.32 | 47.08 | -32.51 | 54.15 | 0.6317 | -477.0 | -418.8 | |
| 0.00 | 1.16 | 0.00 | 0.73 | 16.63 | 47.19 | -32.40 | 56.39 | 0.6186 | 707.0 | 522.8 | |
| 1.25 | 1.52 | 0.78 | 0.95 | 16.21 | 47.12 | -32.47 | 57.04 | 0.6166 | 619.5 | 427.0 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 16.10 | 46.77 | -32.82 | 57.47 | 0.6199 | 410.0 | 488.5 | |
| 0.00 | 3.03 | 0.00 | 1.91 | 15.03 | 46.25 | -33.34 | 59.37 | 0.6191 | 746.0 | 545.6 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 14.33 | 46.18 | -33.40 | 60.43 | 0.6155 | 671.0 | 578.1 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 16.45 | 45.18 | -34.40 | 58.13 | 0.6404 | 728.0 | 584.3 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 15.97 | 45.20 | -34.38 | 58.78 | 0.6371 | 789.0 | 673.4 | |
| 0.98 | 5.27 | 0.64 | 3.40 | 16.09 | 44.56 | -35.02 | 59.05 | 0.6452 | 809.8 | 731.3 | |
| 0.89 | 2.59 | 0.58 | 1.68 | 16.39 | 44.31 | -35.28 | 58.81 | 0.6499 | 838.9 | 728.8 | |
| 0.00 | 2.77 | 0.00 | 1.81 | 16.86 | 43.98 | -35.61 | 58.40 | 0.6565 | 710.0 | 567.1 | |
| 0.00 | 0.62 | 0.00 | 0.42 | 18.27 | 43.54 | -36.05 | 56.81 | 0.6701 | 681.0 | 604.0 | |
| 1.34 | 1.96 | 0.88 | 1.28 | 16.41 | 43.84 | -35.75 | 59.10 | 0.6554 | 688.9 | 513.1 | |
| 0.00 | 1.79 | 0.00 | 1.20 | 18.64 | 43.13 | -36.46 | 56.60 | 0.6768 | 634.0 | 564.5 | |
| 0.00 | 1.70 | 0.00 | 1.13 | 17.86 | 43.08 | -36.51 | 57.65 | 0.6726 | 582.0 | 491.7 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 18.06 | 43.03 | -36.55 | 57.42 | 0.6743 | 704.0 | 617.3 | |
| 1.43 | 6.07 | 0.94 | 4.02 | 16.85 | 43.23 | -36.35 | 58.90 | 0.6648 | 832.1 | 756.1 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 18.42 | 42.86 | -36.72 | 57.06 | 0.6783 | 657.0 | 598.4 | |
| 0.00 | 3.39 | 0.00 | 2.26 | 17.41 | 42.99 | -36.60 | 58.31 | 0.6709 | 545.0 | 585.1 | |
| 1.96 | -26.00 | 1.30 | -26.00 | 16.90 | 43.03 | -36.56 | 58.97 | 0.6674 | 684.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.84 | 18.27 | 42.66 | -36.93 | 57.39 | 0.6796 | 480.0 | 378.3 | |
| 0.00 | 1.16 | 0.00 | 0.78 | 18.08 | 42.67 | -36.92 | 57.64 | 0.6783 | 515.0 | 470.8 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 16.71 | 42.75 | -36.83 | 59.39 | 0.6694 | 512.0 | 413.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
