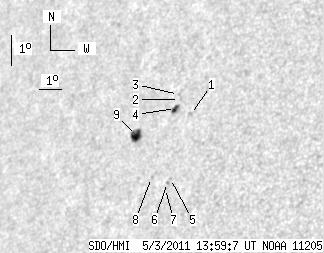

SDO HMI 2011-05-03 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.67 | 22.47 | 9.39 | 16.54 | 13.74 | 35.03 | -44.56 | 67.33 | 0.7409 | -359.1 | -199.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 1.03 | 14.26 | 36.47 | -43.12 | 66.04 | 0.7272 | 390.0 | 413.7 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 14.76 | 35.87 | -43.72 | 65.66 | 0.7358 | 140.0 | 197.1 | |
| 0.00 | 0.89 | 0.00 | 0.65 | 14.92 | 35.78 | -43.80 | 65.49 | 0.7373 | -372.0 | -294.3 | |
| 3.39 | 4.55 | 2.47 | 3.32 | 14.48 | 35.77 | -43.82 | 66.07 | 0.7358 | 529.7 | 370.1 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 12.26 | 36.06 | -43.53 | 68.84 | 0.7240 | -637.0 | -485.6 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 12.14 | 35.96 | -43.63 | 69.04 | 0.7247 | -800.0 | -698.3 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 11.95 | 35.91 | -43.68 | 69.30 | 0.7246 | -603.0 | -511.3 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 12.33 | 35.22 | -44.36 | 69.08 | 0.7336 | -547.0 | -417.7 | |
| 9.28 | 11.60 | 6.92 | 8.65 | 13.70 | 34.25 | -45.34 | 67.71 | 0.7491 | -688.7 | -431.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
