SDO HMI 2011-05-03 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.80 | 31.95 | 11.55 | 23.12 | -17.26 | 124.78 | 45.74 | 249.82 | 0.7301 | 60.6 | 38.7 | |
|
previous
or next observation for the same group /

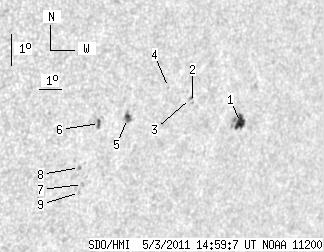

back to the solar disc SDO HMI 2011-05-03 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.55 | 14.73 | 7.24 | 11.16 | -16.98 | 127.50 | 48.46 | 250.91 | 0.7598 | 589.1 | 556.7 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -16.48 | 125.09 | 46.06 | 251.04 | 0.7324 | 493.0 | 453.0 | |
| 0.00 | 1.61 | 0.00 | 1.16 | -16.36 | 124.96 | 45.93 | 251.17 | 0.7307 | 580.0 | 512.9 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -16.07 | 123.89 | 44.85 | 251.31 | 0.7178 | 574.0 | 527.6 | |
| 3.66 | 6.25 | 2.54 | 4.34 | -17.10 | 122.38 | 43.35 | 249.48 | 0.7028 | -673.8 | -541.1 | |
| 2.59 | 3.12 | 1.77 | 2.13 | -17.31 | 121.23 | 42.20 | 248.84 | 0.6899 | -701.6 | -629.2 | |
| 0.00 | 1.61 | 0.00 | 1.10 | -19.23 | 121.08 | 42.04 | 246.08 | 0.6940 | -585.0 | -487.2 | |
| 0.00 | 1.96 | 0.00 | 1.34 | -18.71 | 120.78 | 41.75 | 246.71 | 0.6889 | -707.0 | -574.3 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -19.49 | 121.03 | 41.99 | 245.71 | 0.6943 | -604.0 | -436.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
