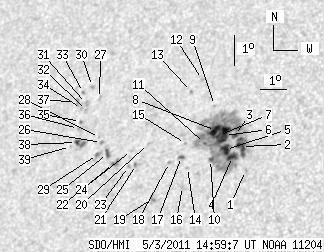

SDO HMI 2011-05-03 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.12 | 269.08 | 36.02 | 167.57 | 16.67 | 47.79 | -31.25 | 55.37 | 0.6057 | -239.7 | -128.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.97 | 15.69 | 49.52 | -29.51 | 55.38 | 0.5785 | -818.0 | -690.5 | |
| 11.42 | 211.53 | 6.98 | 130.42 | 16.47 | 49.25 | -29.79 | 54.47 | 0.5875 | -1006.4 | -316.9 | |
| 2.59 | -2.00 | 1.59 | -2.00 | 16.84 | 48.93 | -30.10 | 54.23 | 0.5939 | -876.6 | 999999 | |
| 5.27 | -2.00 | 3.22 | -2.00 | 16.16 | 48.98 | -30.06 | 55.16 | 0.5884 | -1009.9 | 999999 | |
| 6.16 | -2.00 | 3.78 | -2.00 | 16.40 | 48.68 | -30.36 | 55.07 | 0.5935 | -951.3 | 999999 | |
| 10.80 | -2.00 | 6.66 | -2.00 | 16.85 | 48.56 | -30.47 | 54.52 | 0.5982 | -979.4 | 999999 | |
| 2.86 | -2.00 | 1.77 | -2.00 | 16.86 | 48.34 | -30.69 | 54.70 | 0.6008 | -981.6 | 999999 | |
| 8.12 | -2.00 | 5.04 | -2.00 | 17.03 | 48.20 | -30.84 | 54.58 | 0.6036 | -844.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 17.84 | 48.01 | -31.03 | 53.60 | 0.6118 | -620.0 | -417.5 | |
| 1.79 | -2.00 | 1.10 | -2.00 | 16.09 | 48.18 | -30.85 | 55.93 | 0.5971 | -269.6 | 999999 | |
| 0.45 | -2.00 | 0.28 | -2.00 | 16.62 | 47.87 | -31.17 | 55.43 | 0.6045 | -489.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.68 | 18.71 | 47.38 | -31.65 | 52.93 | 0.6252 | -668.0 | -509.5 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 18.33 | 47.05 | -31.99 | 53.71 | 0.6260 | -588.0 | -506.2 | |
| 0.00 | 1.07 | 0.00 | 0.66 | 15.87 | 47.38 | -31.66 | 56.91 | 0.6049 | -221.0 | -238.0 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 16.65 | 47.16 | -31.88 | 55.97 | 0.6128 | 610.0 | 487.7 | |
| 0.00 | 1.34 | 0.00 | 0.83 | 15.26 | 47.30 | -31.74 | 57.85 | 0.6017 | 589.0 | 415.7 | |
| 1.70 | 2.14 | 1.06 | 1.34 | 16.23 | 47.09 | -31.95 | 56.61 | 0.6107 | 690.3 | 582.6 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 16.05 | 46.67 | -32.36 | 57.19 | 0.6143 | 617.0 | 532.1 | |
| 0.00 | 4.28 | 0.00 | 2.68 | 14.92 | 46.24 | -32.79 | 59.14 | 0.6119 | 812.0 | 671.1 | |
| 0.00 | 1.07 | 0.00 | 0.68 | 16.70 | 45.76 | -33.27 | 56.96 | 0.6291 | 568.0 | 420.3 | |
| 0.00 | 2.95 | 0.00 | 1.87 | 16.04 | 45.44 | -33.60 | 58.13 | 0.6285 | 733.0 | 501.6 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 16.50 | 45.16 | -33.88 | 57.69 | 0.6347 | 692.0 | 478.1 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 15.98 | 45.14 | -33.89 | 58.41 | 0.6316 | 771.0 | 610.0 | |
| 1.07 | 5.27 | 0.69 | 3.38 | 16.11 | 44.55 | -34.49 | 58.67 | 0.6392 | 820.8 | 744.4 | |
| 3.03 | 3.30 | 1.96 | 2.13 | 16.44 | 44.25 | -34.78 | 58.41 | 0.6446 | 815.2 | 646.5 | |
| 0.00 | 1.87 | 0.00 | 1.22 | 16.80 | 43.94 | -35.09 | 58.12 | 0.6504 | 696.0 | 560.7 | |
| 0.00 | 1.96 | 0.00 | 1.30 | 18.25 | 43.54 | -35.49 | 56.46 | 0.6639 | 700.0 | 555.2 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 16.97 | 43.83 | -35.21 | 57.97 | 0.6527 | 368.0 | 351.2 | |
| 0.00 | 3.39 | 0.00 | 2.20 | 16.42 | 43.87 | -35.17 | 58.70 | 0.6489 | 772.0 | 630.6 | |
| 0.00 | 1.61 | 0.00 | 1.07 | 18.65 | 43.17 | -35.87 | 56.18 | 0.6705 | 662.0 | 546.6 | |
| 0.00 | 2.05 | 0.00 | 1.36 | 18.10 | 43.06 | -35.97 | 56.98 | 0.6682 | 713.0 | 579.5 | |
| 0.00 | 1.34 | 0.00 | 0.89 | 17.87 | 43.12 | -35.92 | 57.24 | 0.6662 | 485.0 | 536.7 | |
| 0.00 | 1.07 | 0.00 | 0.72 | 18.47 | 42.86 | -36.18 | 56.63 | 0.6727 | 631.0 | 529.8 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 17.95 | 42.90 | -36.13 | 57.29 | 0.6690 | 622.0 | 577.4 | |
| 1.16 | 1.43 | 0.77 | 0.95 | 17.52 | 42.96 | -36.07 | 57.81 | 0.6657 | 612.8 | 638.7 | |
| 0.00 | 1.34 | 0.00 | 0.89 | 17.30 | 42.94 | -36.10 | 58.13 | 0.6647 | 564.0 | 485.0 | |
| 0.00 | 2.86 | 0.00 | 1.91 | 18.15 | 42.70 | -36.34 | 57.16 | 0.6725 | 520.0 | 441.8 | |
| 1.70 | 6.60 | 1.12 | 4.34 | 16.85 | 42.96 | -36.07 | 58.73 | 0.6617 | 698.7 | 771.5 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 16.73 | 42.75 | -36.28 | 59.02 | 0.6633 | 479.0 | 374.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
