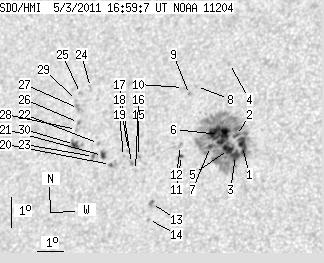

SDO HMI 2011-05-03 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.49 | 254.61 | 34.69 | 156.65 | 16.73 | 47.82 | -30.11 | 54.34 | 0.5932 | -279.7 | -167.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.08 | 200.27 | 6.09 | 122.04 | 16.49 | 49.30 | -28.63 | 53.42 | 0.5744 | -1075.7 | -348.5 | |
| 2.05 | -1.00 | 1.25 | -1.00 | 16.86 | 49.02 | -28.91 | 53.14 | 0.5804 | -827.5 | 999999 | |
| 2.95 | -1.00 | 1.78 | -1.00 | 16.21 | 49.09 | -28.84 | 54.02 | 0.5746 | -1124.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.83 | 19.22 | 48.33 | -29.60 | 50.47 | 0.6069 | -545.0 | -511.1 | |
| 5.80 | -1.00 | 3.52 | -1.00 | 16.41 | 48.81 | -29.12 | 53.98 | 0.5794 | -1044.9 | 999999 | |
| 23.74 | -1.00 | 14.51 | -1.00 | 16.91 | 48.40 | -29.53 | 53.63 | 0.5880 | -933.6 | 999999 | |
| 1.87 | -1.00 | 1.15 | -1.00 | 16.53 | 48.13 | -29.80 | 54.40 | 0.5881 | -530.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.73 | 18.51 | 47.25 | -30.68 | 52.39 | 0.6130 | -491.0 | -474.2 | |
| 0.00 | 1.25 | 0.00 | 0.78 | 18.26 | 47.04 | -30.89 | 52.91 | 0.6134 | -654.0 | -569.8 | |
| 0.00 | 1.61 | 0.00 | 1.01 | 18.49 | 46.77 | -31.16 | 52.82 | 0.6181 | -571.0 | -438.9 | |
| 1.43 | 3.57 | 0.88 | 2.20 | 16.28 | 47.12 | -30.81 | 55.63 | 0.5979 | 596.6 | 459.9 | |
| 0.00 | 2.32 | 0.00 | 1.44 | 16.60 | 47.02 | -30.91 | 55.24 | 0.6014 | -79.0 | -143.4 | |
| 0.00 | 3.21 | 0.00 | 1.98 | 14.78 | 46.27 | -31.66 | 58.50 | 0.5974 | 860.0 | 738.4 | |
| 0.00 | 1.34 | 0.00 | 0.82 | 14.27 | 46.24 | -31.69 | 59.28 | 0.5944 | 615.0 | 413.4 | |
| 0.00 | 1.87 | 0.00 | 1.18 | 16.31 | 45.52 | -32.41 | 56.86 | 0.6166 | 745.0 | 656.0 | |
| 0.00 | 1.52 | 0.00 | 0.95 | 15.86 | 45.49 | -32.44 | 57.52 | 0.6139 | 808.0 | 645.1 | |
| 0.00 | 1.87 | 0.00 | 1.18 | 16.09 | 45.30 | -32.63 | 57.34 | 0.6177 | 885.0 | 780.5 | |
| 0.00 | 1.34 | 0.00 | 0.85 | 16.52 | 45.11 | -32.82 | 56.88 | 0.6227 | 725.0 | 539.4 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 16.33 | 44.95 | -32.98 | 57.26 | 0.6232 | 634.0 | 548.8 | |
| 1.16 | 3.93 | 0.74 | 2.49 | 16.09 | 44.51 | -33.42 | 57.93 | 0.6268 | 832.8 | 677.5 | |
| 2.68 | 3.75 | 1.71 | 2.39 | 16.39 | 44.15 | -33.78 | 57.77 | 0.6329 | 835.6 | 784.5 | |
| 0.00 | 1.78 | 0.00 | 1.15 | 16.79 | 43.92 | -34.01 | 57.38 | 0.6381 | 728.0 | 547.7 | |
| 1.43 | 3.21 | 0.92 | 2.06 | 16.37 | 43.81 | -34.12 | 58.03 | 0.6367 | 648.9 | 566.7 | |
| 0.00 | 2.14 | 0.00 | 1.41 | 18.63 | 43.20 | -34.73 | 55.41 | 0.6580 | 661.0 | 549.5 | |
| 0.00 | 1.87 | 0.00 | 1.23 | 18.45 | 42.86 | -35.07 | 55.90 | 0.6606 | 674.0 | 501.8 | |
| 0.00 | 1.61 | 0.00 | 1.05 | 17.50 | 42.99 | -34.94 | 57.06 | 0.6530 | 752.0 | 596.7 | |
| 0.00 | 3.93 | 0.00 | 2.57 | 17.96 | 42.89 | -35.04 | 56.52 | 0.6571 | 666.0 | 604.0 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 17.28 | 42.97 | -34.96 | 57.39 | 0.6519 | 619.0 | 493.4 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 18.23 | 42.75 | -35.18 | 56.26 | 0.6603 | 490.0 | 397.8 | |
| 3.30 | 6.96 | 2.14 | 4.52 | 16.79 | 42.99 | -34.94 | 58.03 | 0.6486 | 802.8 | 626.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
