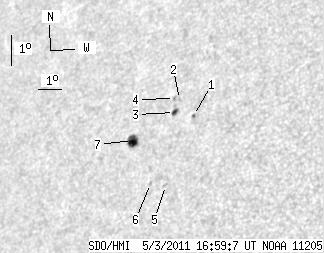

SDO HMI 2011-05-03 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.22 | 20.17 | 8.81 | 14.44 | 13.91 | 34.96 | -42.97 | 66.43 | 0.7241 | -428.6 | -273.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 1.34 | 0.69 | 0.94 | 14.42 | 36.63 | -41.30 | 64.97 | 0.7077 | 551.9 | 498.8 | |
| 0.00 | 0.80 | 0.00 | 0.57 | 14.96 | 35.92 | -42.01 | 64.61 | 0.7180 | -388.0 | -277.7 | |
| 1.87 | 3.12 | 1.33 | 2.21 | 14.56 | 35.81 | -42.12 | 65.19 | 0.7175 | 603.1 | 461.9 | |
| 0.00 | 1.70 | 0.00 | 1.21 | 15.01 | 35.70 | -42.23 | 64.66 | 0.7207 | -574.0 | -536.0 | |
| 0.00 | 1.25 | 0.00 | 0.87 | 12.25 | 35.93 | -42.00 | 68.20 | 0.7066 | -480.0 | -520.9 | |
| 0.00 | 1.07 | 0.00 | 0.76 | 12.34 | 35.28 | -42.65 | 68.36 | 0.7144 | -493.0 | -389.1 | |
| 9.37 | 10.89 | 6.79 | 7.88 | 13.75 | 34.20 | -43.73 | 66.98 | 0.7318 | -697.8 | -472.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
